portable small diesel water pump high pressure irrigation pump
Brief introduction:
,diesel engine,electrical engine,water pump,Made in china,- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now

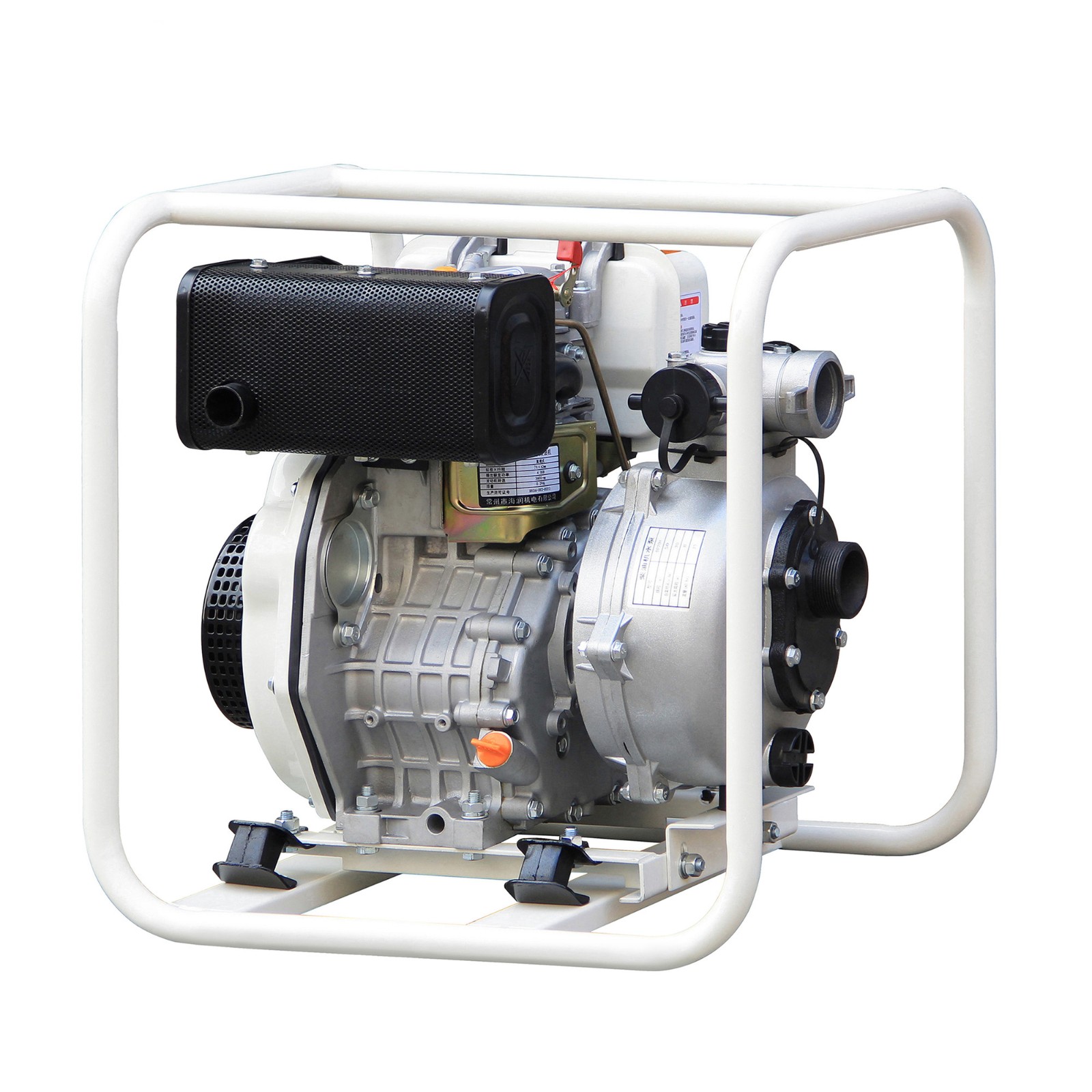

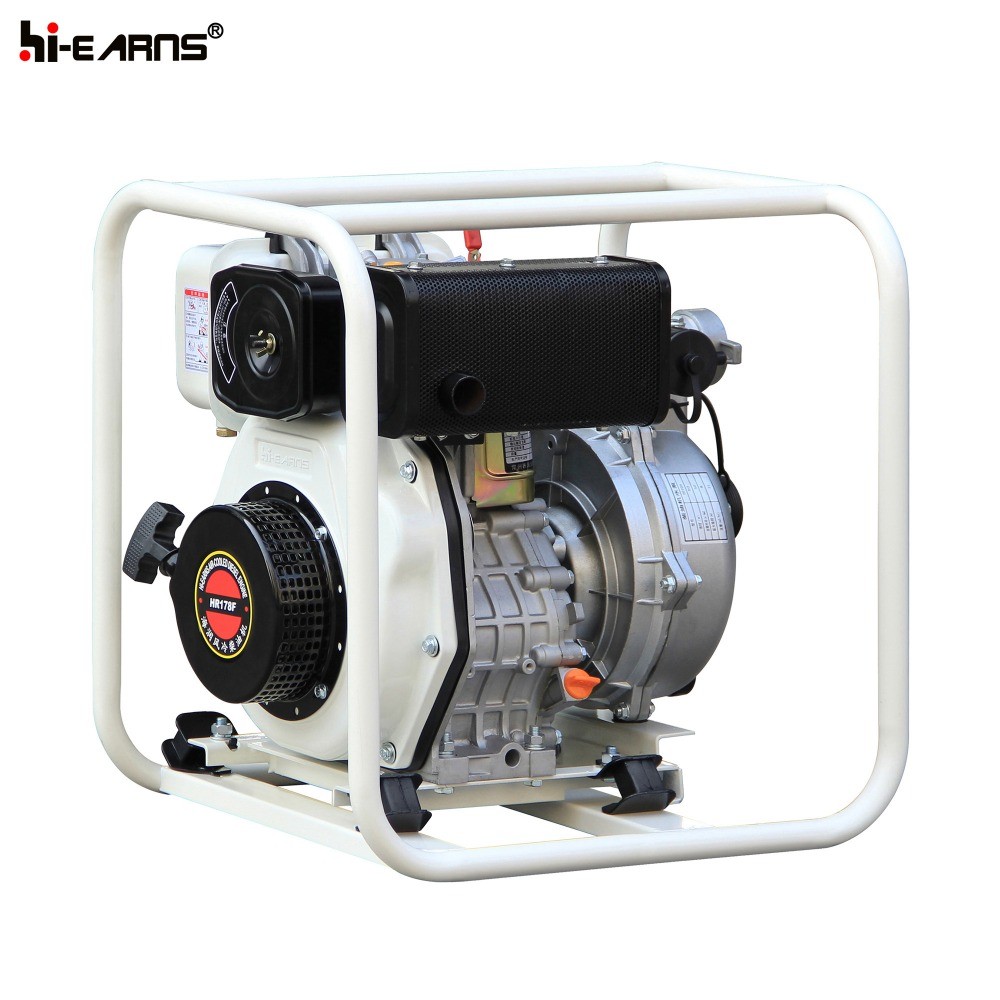

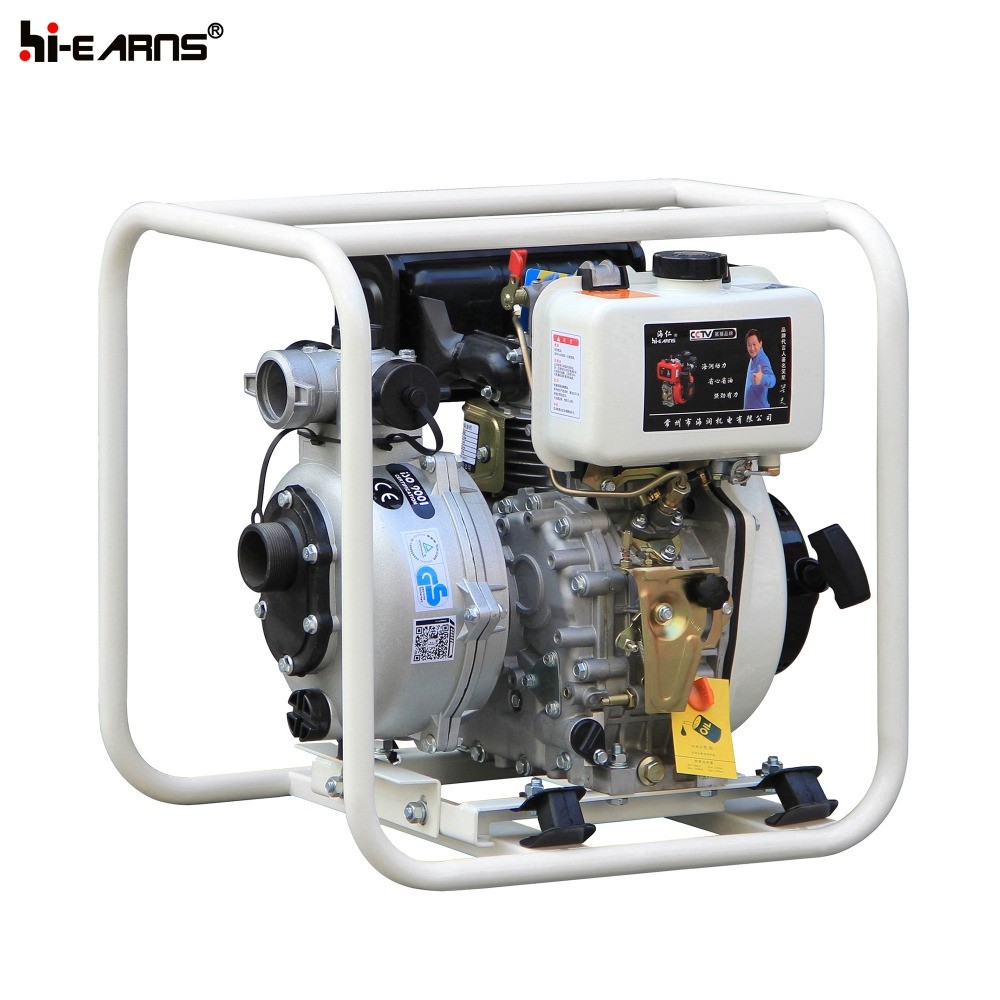

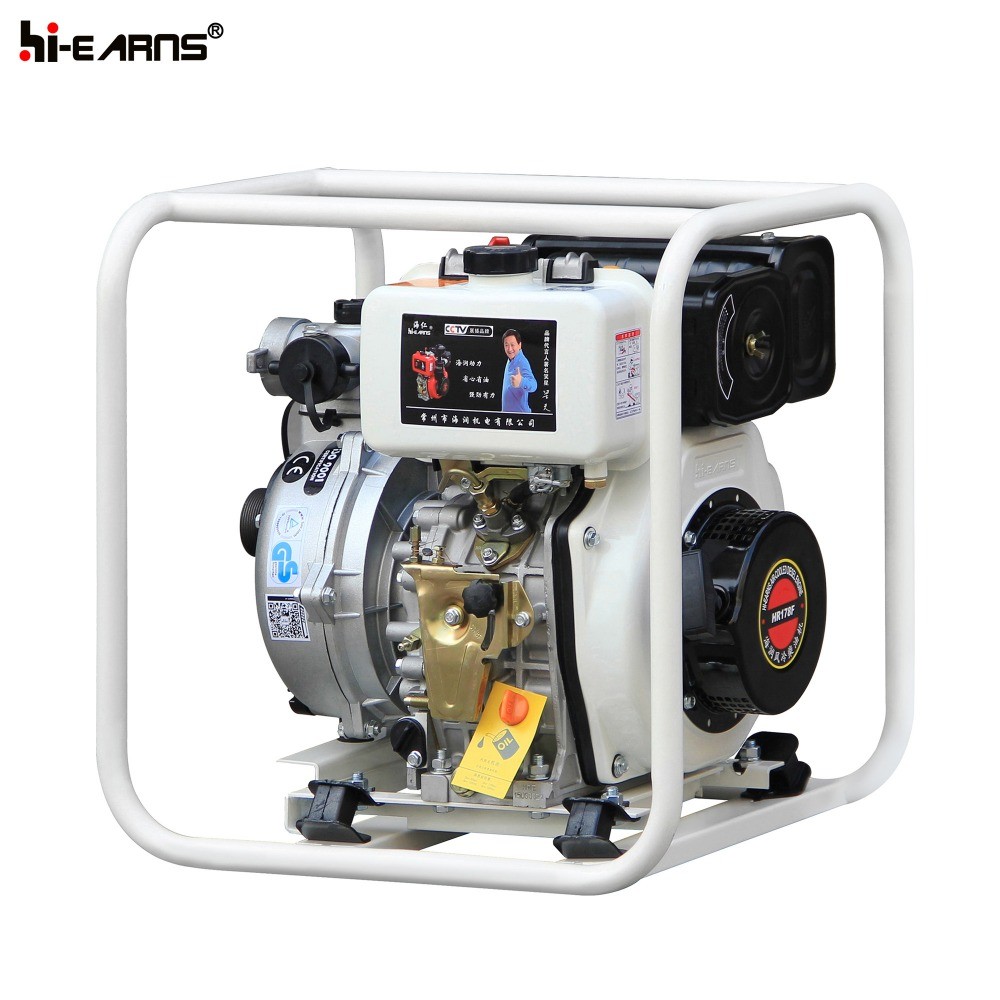

high pressure for irrigation diesel water pump DP20H
♦ DP20H model: With 10 HP HR186FA air-cooled diesel engine, Ensure a big flow and self-priming type; water pump
♦ Also have 2inch, 3 inch and 4 inch models, just according what you need!
♦ Recoil and Electric start are optional ensure easy start!
WATER PUMP | Model | DP20H | |
Suction,discharge port diameter[mm(in)] | 50(2#39;#39;) | ||
Cont.head(m) | 50 | ||
Self-priming time(s/4m) | 30 | ||
Max suction head(m) | 8 | ||
Cont.capacity(m³/hr) | 23 | ||
ENGINE | Engine model | HR186FA | |
Speed(rpm) | 3600 | ||
Fuel consumption(g/kw.h) | 280 | ||
Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 418 | ||
Bore*stroke(mm) | 86x72 | ||
Starting system | Recoil or Electric | ||
Fuel tank capacity(L) | 5.5 | ||
STANDARD FEATURES | Oil alert | yes | |
Connector of infall,Connecto of outfall | yes | ||
Filter | yes | ||
Seal ring | yes | ||
Hoop | yes | ||
DIMENSIONS | Dimension(L× W× H)(mm) | 645×475×605 | |
Net weight(kg) | 69 | ||
20FT | 108 |
Automatic workshop
♦ Modern Production Workshop, stict producing process, ensure a fast and high-quality products output;
♦ Flow card ro record each details carefully;
Company Information
♦ We are professional manufacture of air-cooled diesel engine(3-20HP), diesel generator sets(2-1000KW), diesel water pump(1.5-6Inch), small construction machines and so on.
♦ Morden and beautiful factory of Changzhou Hi-earns, warmly welcome YOU from all over the world have a visit to us! (Only 2 hours drive from Shanghai!)
♦ We attended every Canton Fair and some oversea Exhibition!
♦ ISO, CE, GS, ROHS certification for all over the world customer.
Our Services
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
♦ If you find one even more products match what you need, So do not hesitate to contact us by each of followed type:
