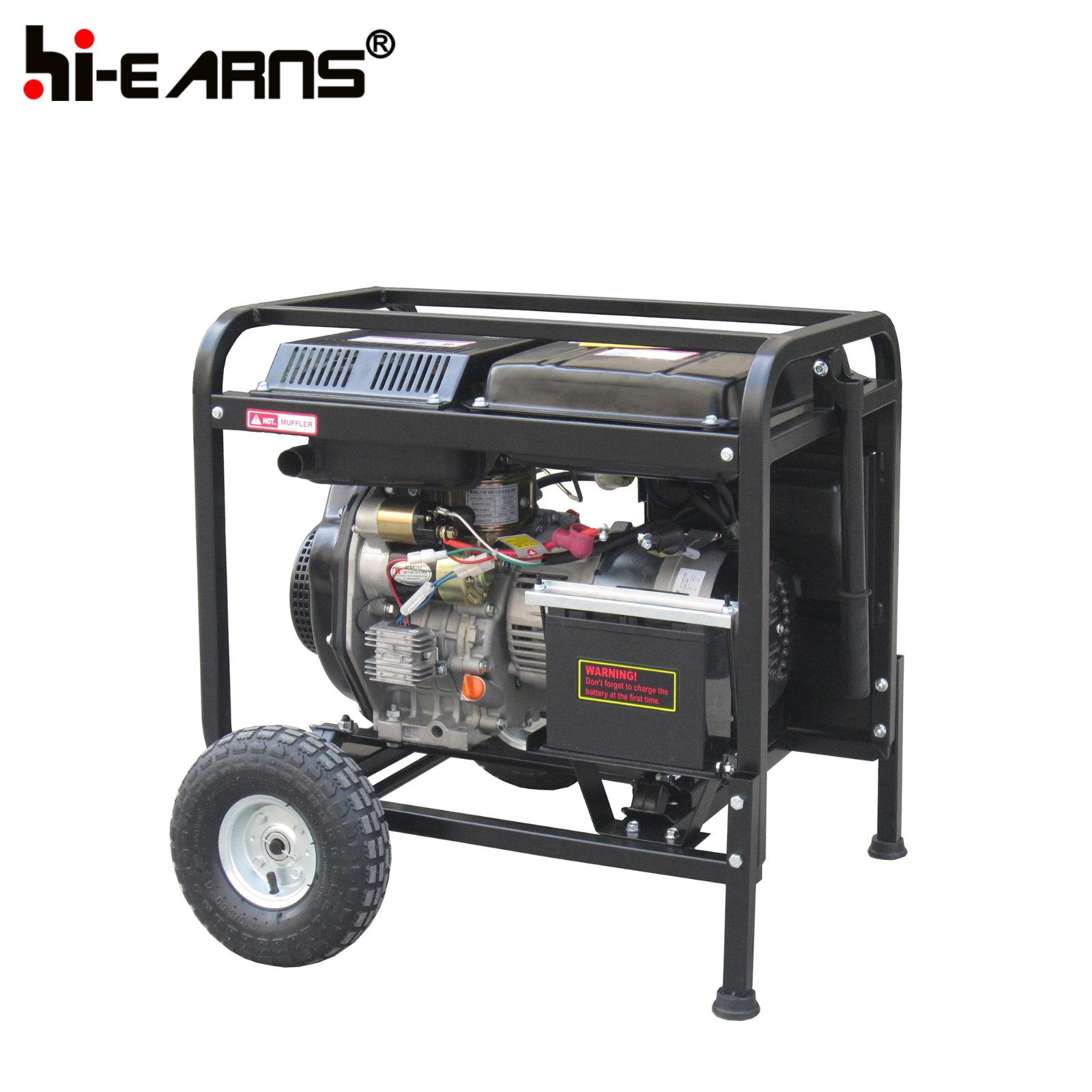

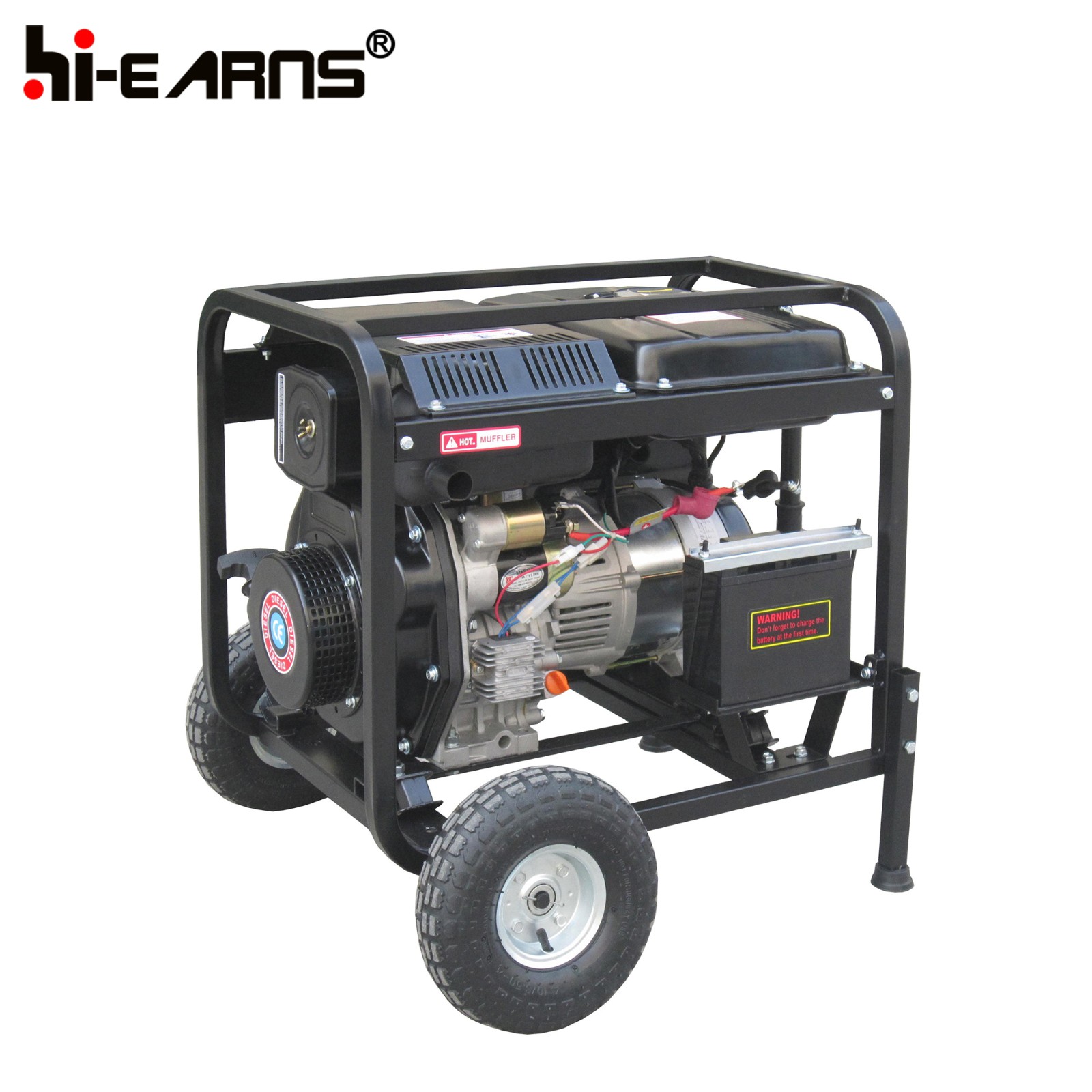

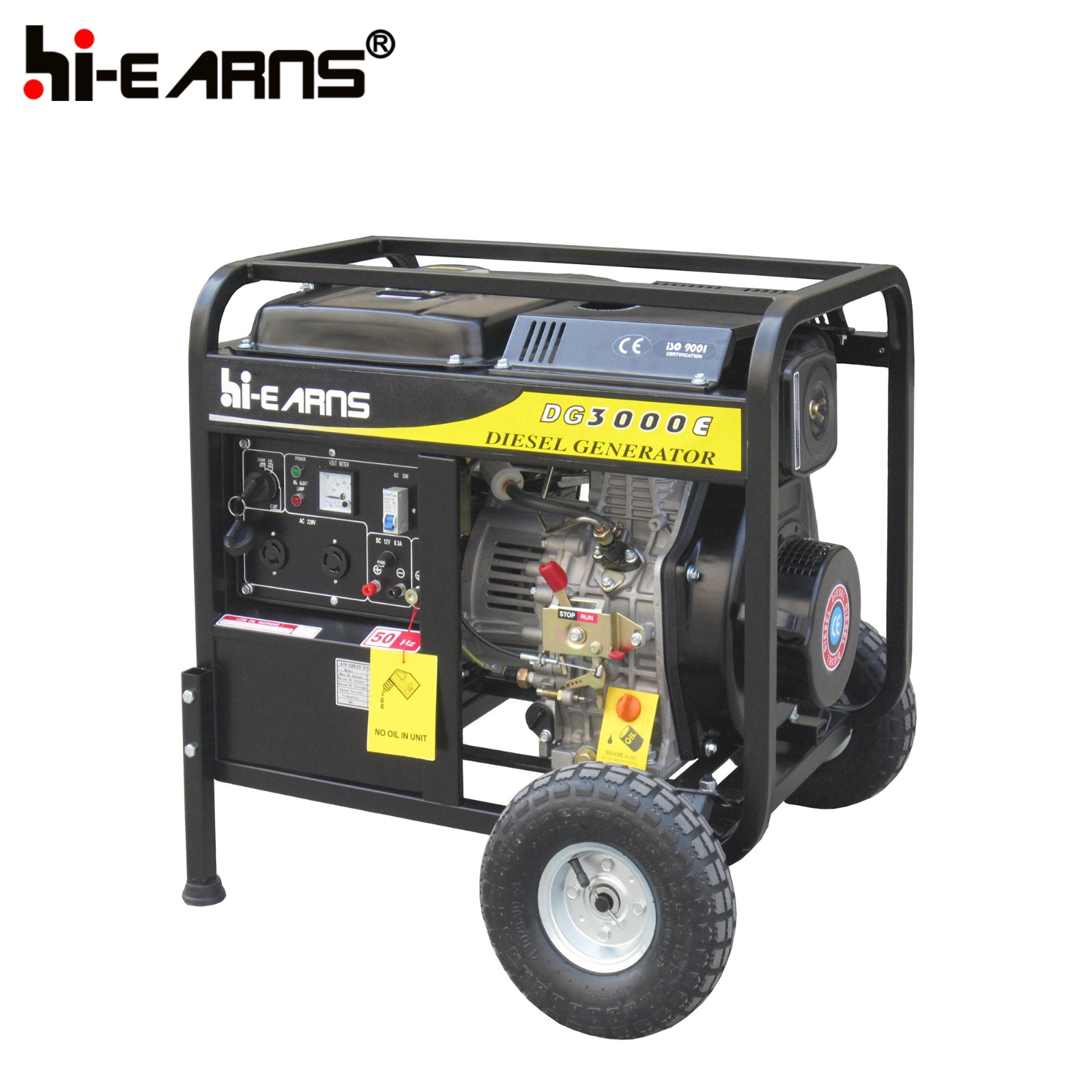

Portable open frame 3KW air-cooled italy diesel generator
Brief introduction：
,diesel engine,diesel generator,Made in china,open diesel generator,- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now
Portable open frame 3KW air-cooled italy diesel generator
| GENERATOR | Model | DG3000E | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 3 | 3.3 | |
| Rated output(kw) | 2.8 | 3 | |
| Rated. AC voltage(v) | 220 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited, 2-pole, single phase alternator | ||
| Starting system | Recoil or Electric | ||
| Operating noise level(at 7m) | 80~85 | ||
| Fuel tank capacity(L) | 12.5 | ||
| Continues work(hr) | 9.7 | 9 | |
| ENGINE | Model | HR178F | |
| Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 78× 62 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 0.75 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | no | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 690× 490× 600 | |
| Net weight(kg) | 82 | ||
| 20FT | 144 | ||
