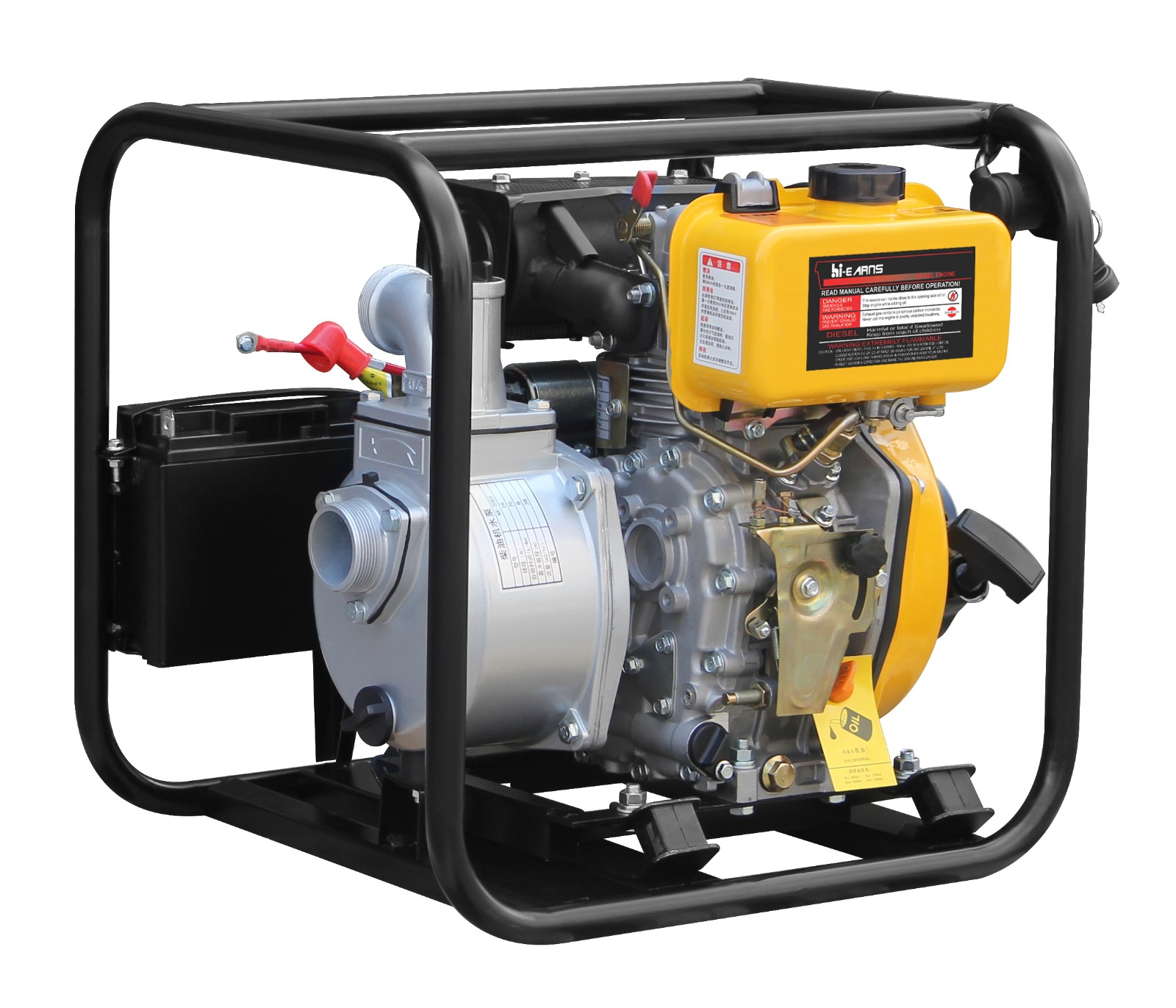

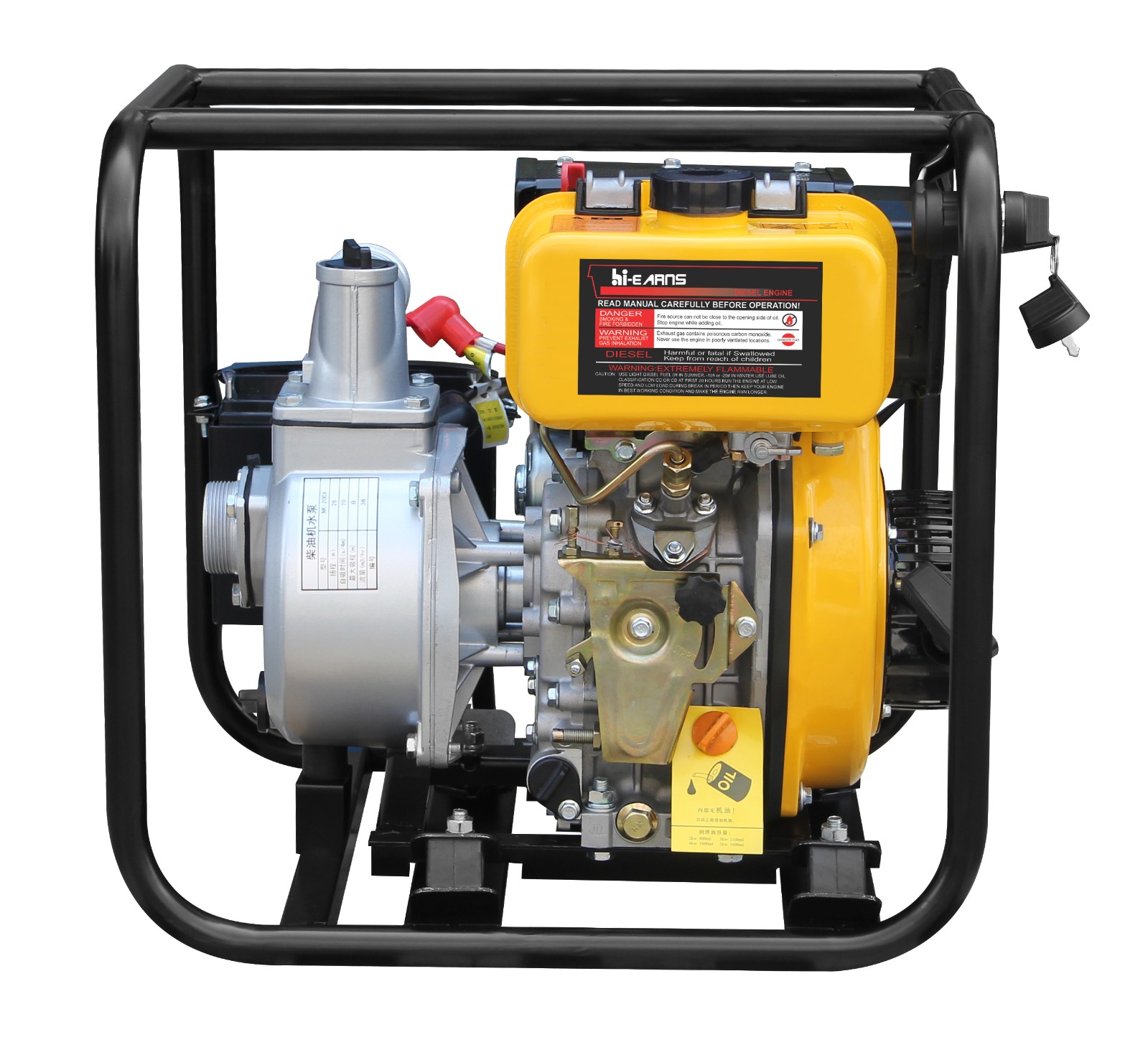

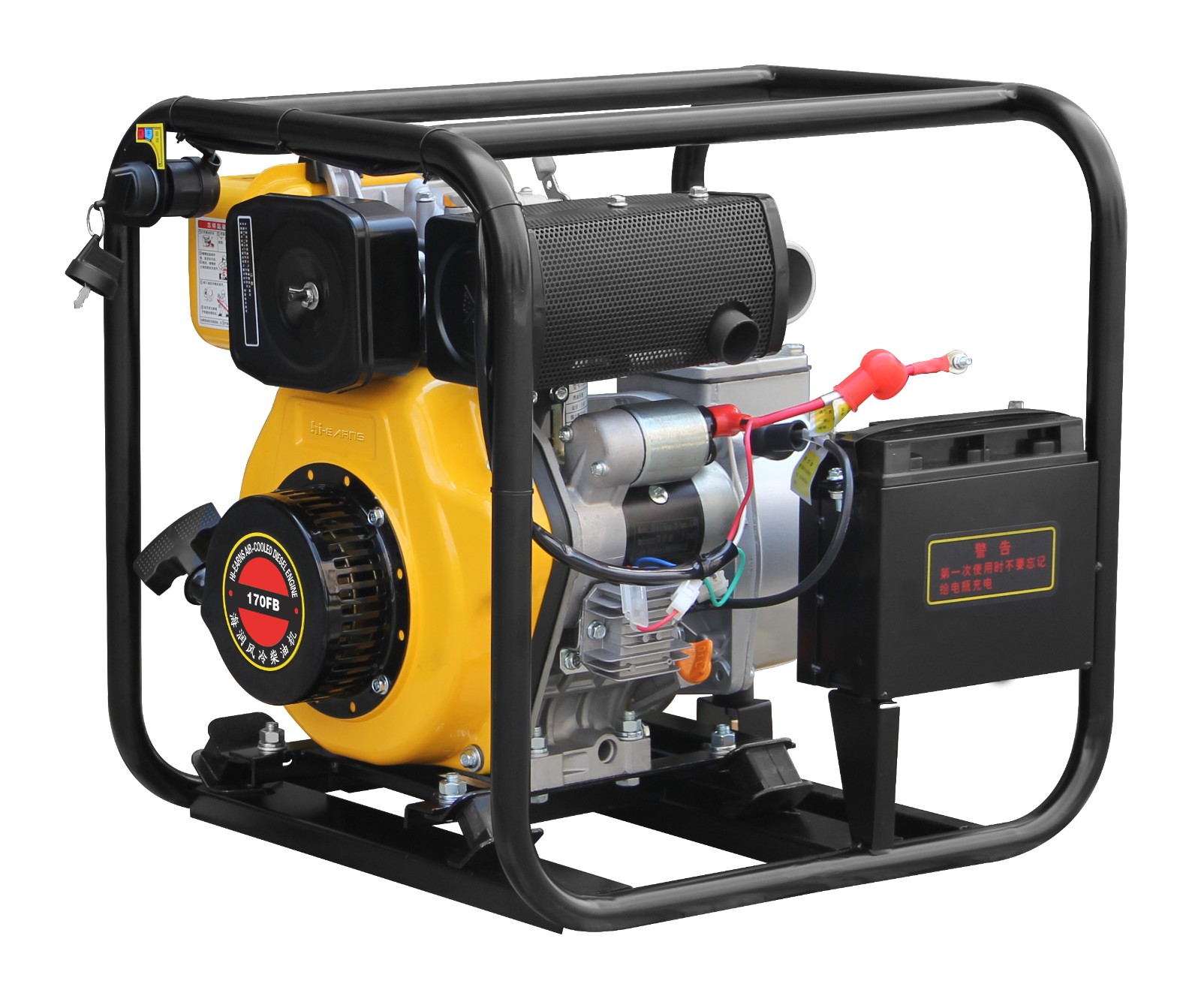

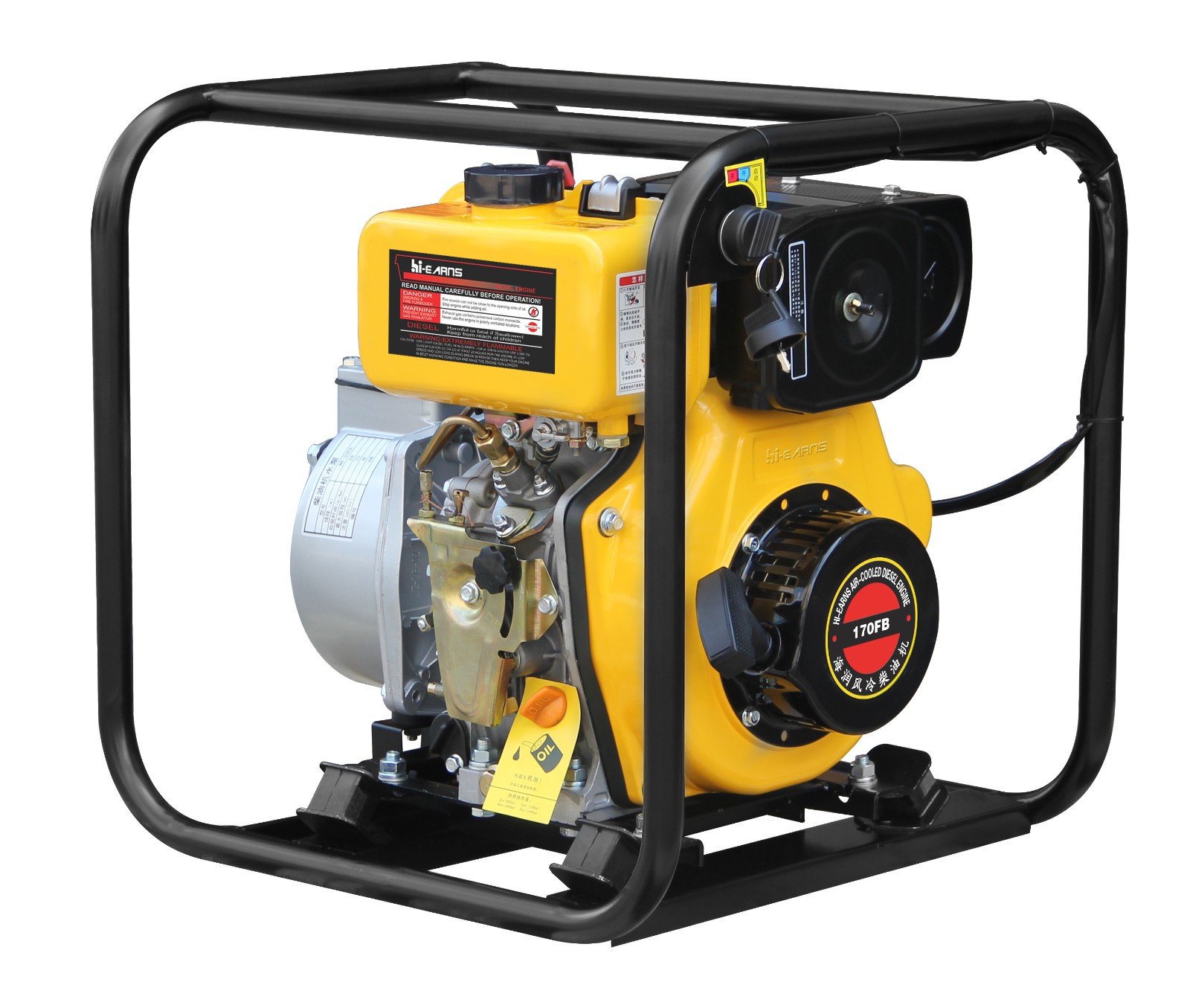

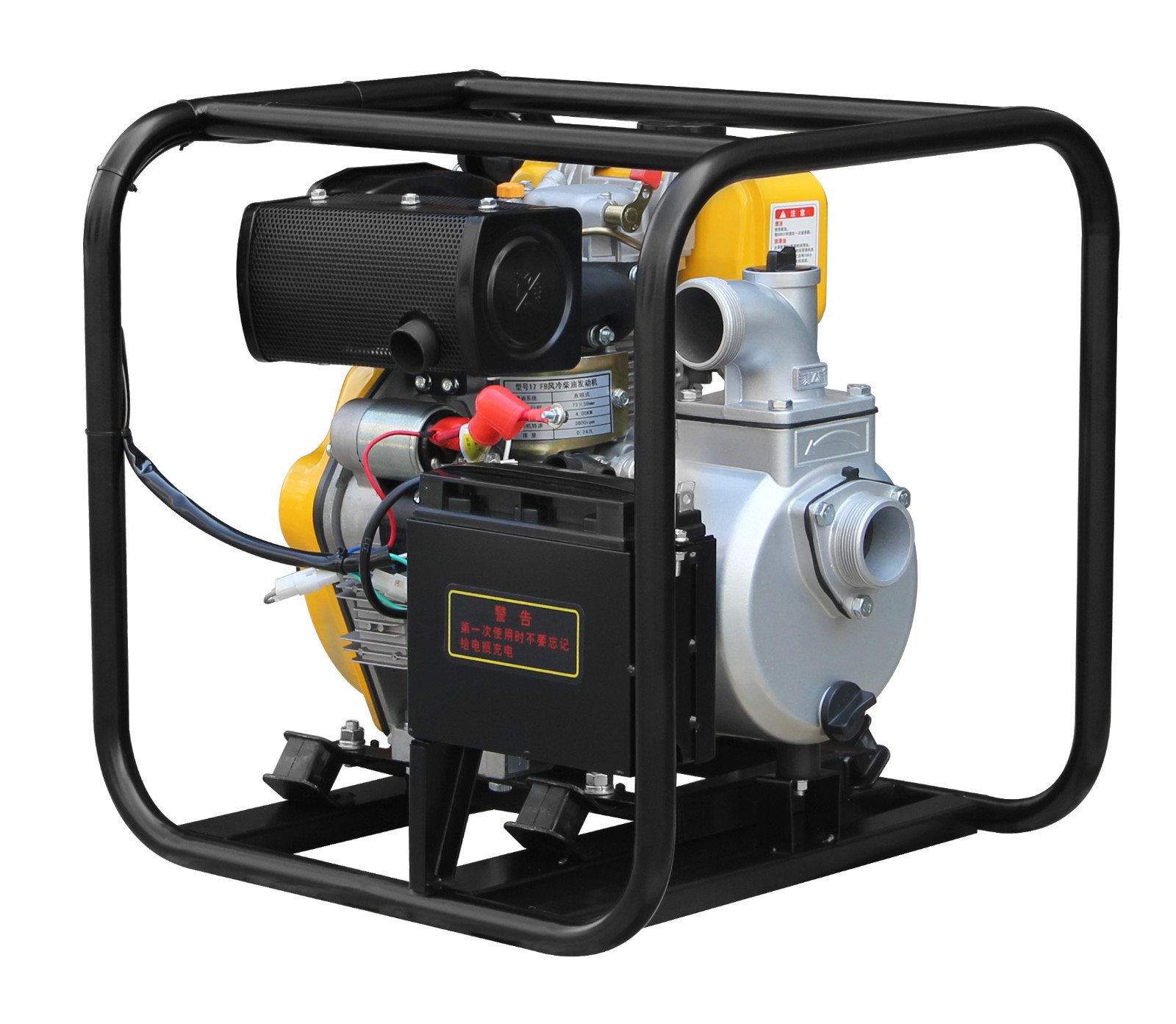

Portable air-cooled 2 inch diesel water pump electric start
Brief introduction：
,diesel engine,electrical engine,water pump,Made in china,- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now
2#39; Diesel water pump
| WATER PUMP | Model | DP20E | |
| Suction,discharge port diameter[mm(in)] | 50(2#39;) | ||
| Cont.head(m) | 26 | ||
| Self-priming time(s/4m) | 70 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 36 | ||
| ENGINE | Engine model | HR170FB | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 280 | ||
| Fuel | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 211 | ||
Bore*stroke(mm) | 70*59 | ||
Starting system | Recoil and Electric | ||
| Fuel tank capacity(L) | 2.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 490×420×530 | |
| Net weight(kg) | 39 | ||
| 20FT | 240 | ||
Advantages
1.Reliable Performance:
Reliable Performance is the major advantage of Hi-earns products,and this reliability is based on the outstanding design in every aspect and strict Q.C. System.
2.Customer First:
We devote ourselves to develop products to meet customers#39; requirements .Our engineer develop and design new products for customers.
3.Strict test process before ex-factory:
Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.
4.Low fuel consumption, easy maintenance
5.Certification: CE,ISO etc.
6.Our logo or OEM
Automatic workshop
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
Product Description
Company Information
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE Certificates. We have been making good progress.
