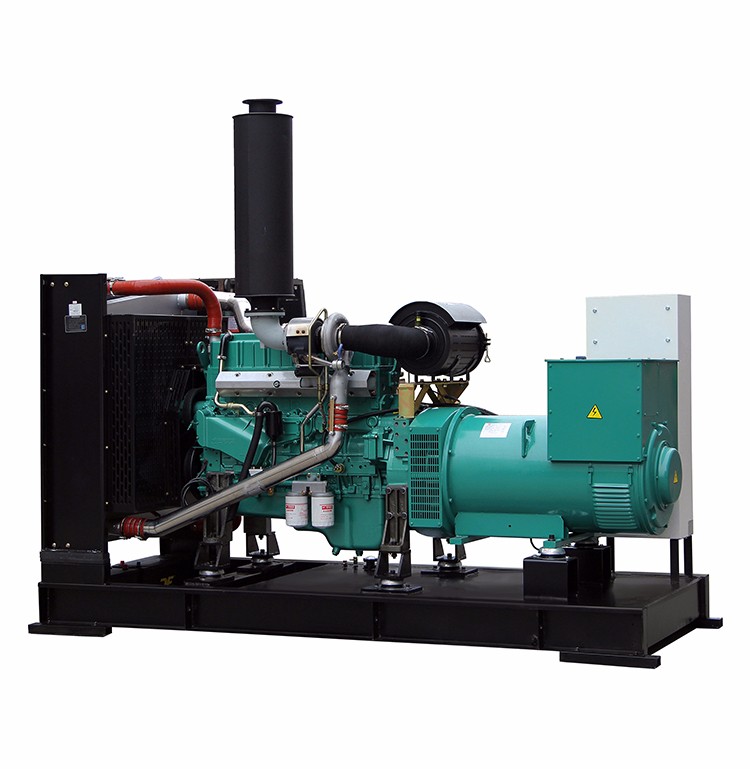

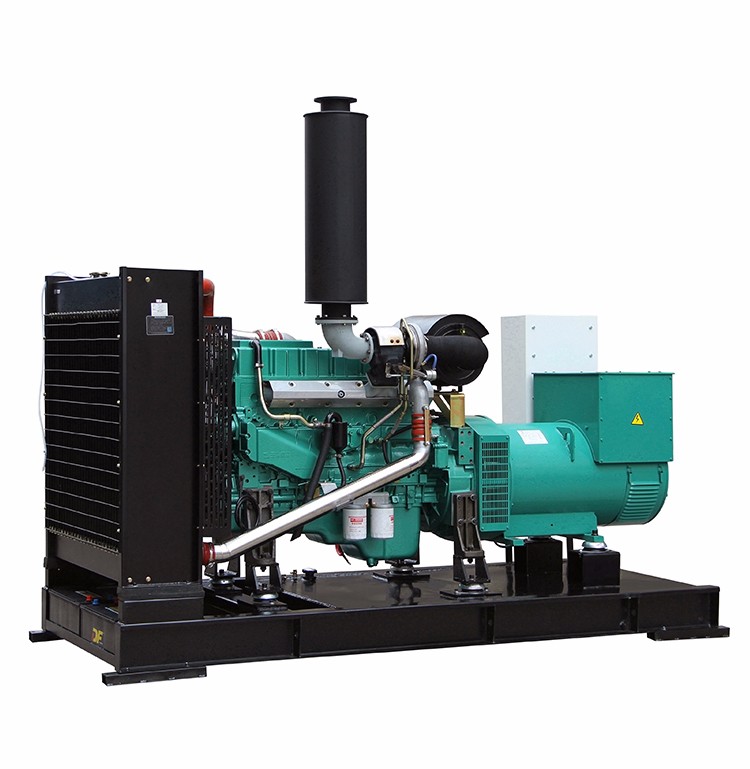

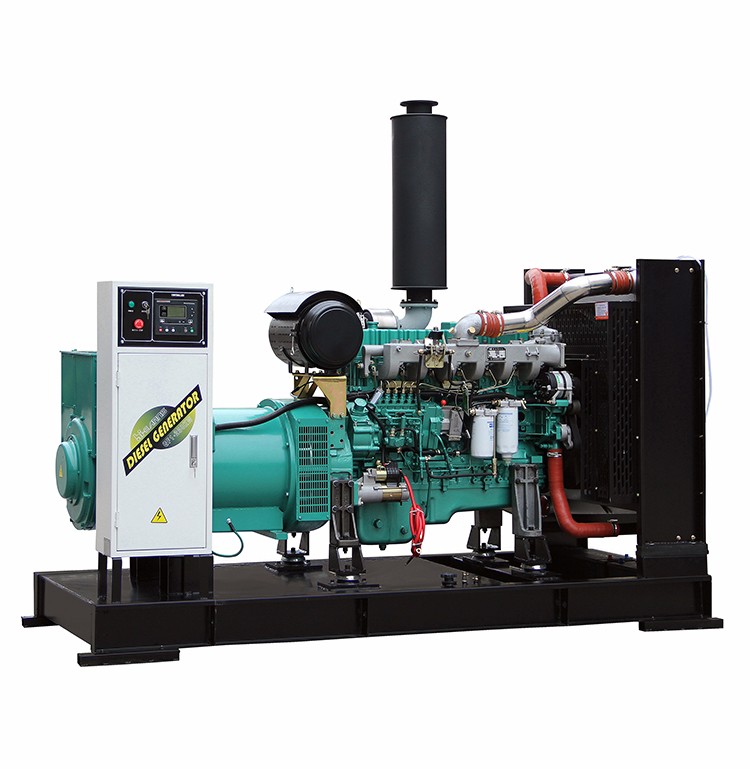

High quality 320KVA open diesel generator
Brief introduction：
Low consumption, competitive price, short delivery time, strong and stable power, best after-sale service
Electric start, Smartgen digital panel- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now
| Voltage | Frequency (HZ) | Phase | P.F(COS) | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 440/254 | 50 | 3 | 0.8 | 433 | 264/330 | 250/313 |
| 415/240 | 50 | 3 | 0.8 | 459 | 264/330 | 250/313 |
| 400/230 | 50 | 3 | 0.8 | 476 | 264/330 | 250/313 |
| 380/220 | 50 | 3 | 0.8 | 501 | 264/330 | 250/313 |
| ENGINE DATA | ||||||
| Model | SC13G420D2 | |||||
| Diesel Generator Type | Direct injection,Direct line, Four stroke,Water-cooled | |||||
| Cylinder Number | 12 | |||||
| Bore×Stroke（mm） | 135×155 | |||||
| Compression Rate | 16:01 | |||||
| Total Displacement （L） | 25.8 | |||||
| Rated Fuel Consumption（g/kW·h） | 210 | |||||
| Timing Method | Mechanical Governor | |||||
| Rated RPM （r/min） | 1500 | |||||
| Cooling System | Fan,Water tank enforce cooling | |||||
| Start Method | Electric Start | |||||
| ALTERNATOR DATA | ||||||
| Insulation Class | H | |||||
| Lubricating System | Pressure,Split,Complex | |||||
| exhaust Air Temperature (℃) | ≤680 | |||||
| Altitude | ≤1000m | |||||
| Environment Temperature (℃) | 40 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Rated Speed Regulation % | 5% | |||||
| Dimension Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size (mm):3150×1400×1540 | Overall Size (mm):3400×1500×1640 | |||||
| Weight ：2020kg | Weight ：2100kg | |||||
