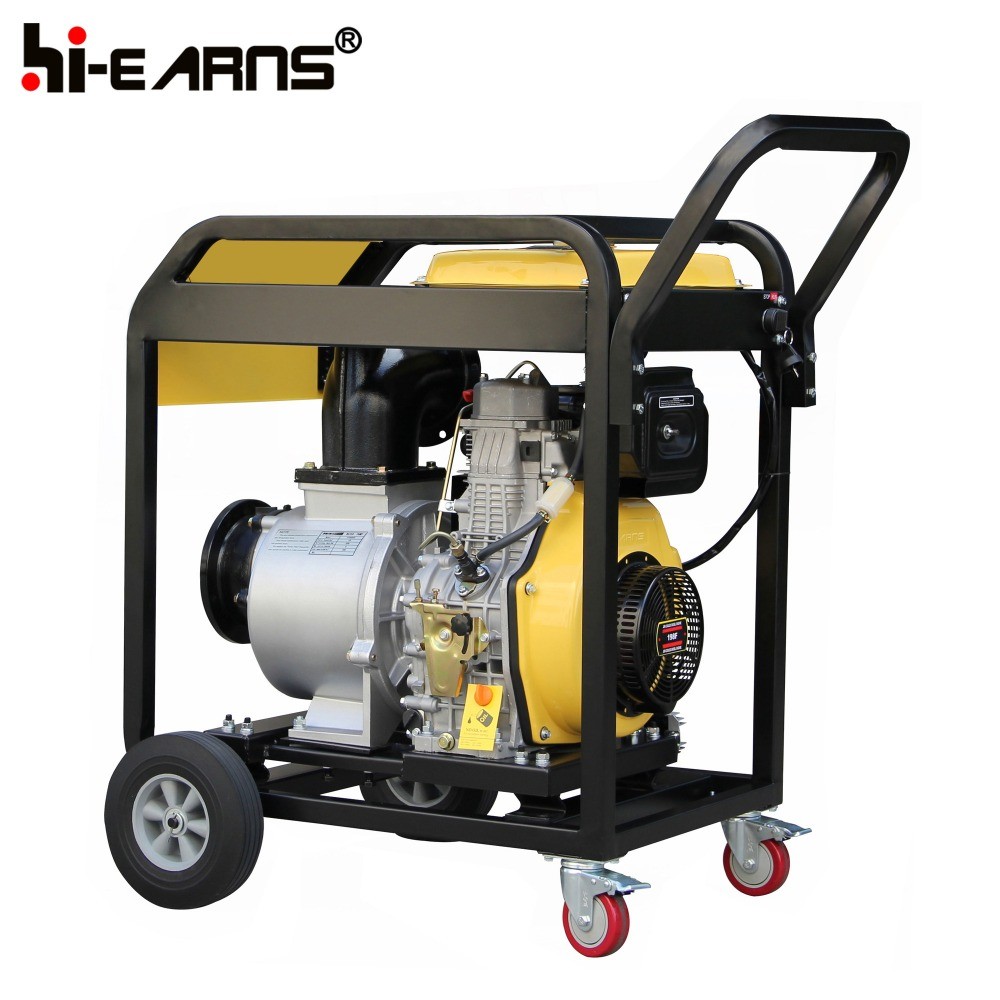

6inch 12V electric start diesel water pump with 16hp diesel engine
Brief introduction：
,diesel engine,electrical engine,water pump,Made in china,- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now
DP60E 6inch 12volt electric start diesel water pump
| WATER PUMP | Model | DP60E | |
| Suction,discharge port diameter[mm(in)] | 150(6#39;), 150(6#39;) | ||
| Cont.head(m) | 15 | ||
| Self-priming time(s/4m) | 200 | ||
| Max suction head(m) | 6 | ||
| Cont.capacity(m³/hr) | 180 | ||
| ENGINE | Engine model | HR198FA | |
| Speed(rpm) | 3200 | ||
| Fuel consumption(g/kw.h) | 230 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 633 | ||
Bore*stroke(mm) | 98*84 | ||
Starting system | Electric | ||
| Fuel tank capacity(L) | 23 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 755×530×825 | |
| Net weight(kg) | 147 | ||
| 20FT | 56 | ||
