6KW diesel generator with equal power output for single and three phase voltage

Product Categroies

Home > Products > Open frame diesel generator

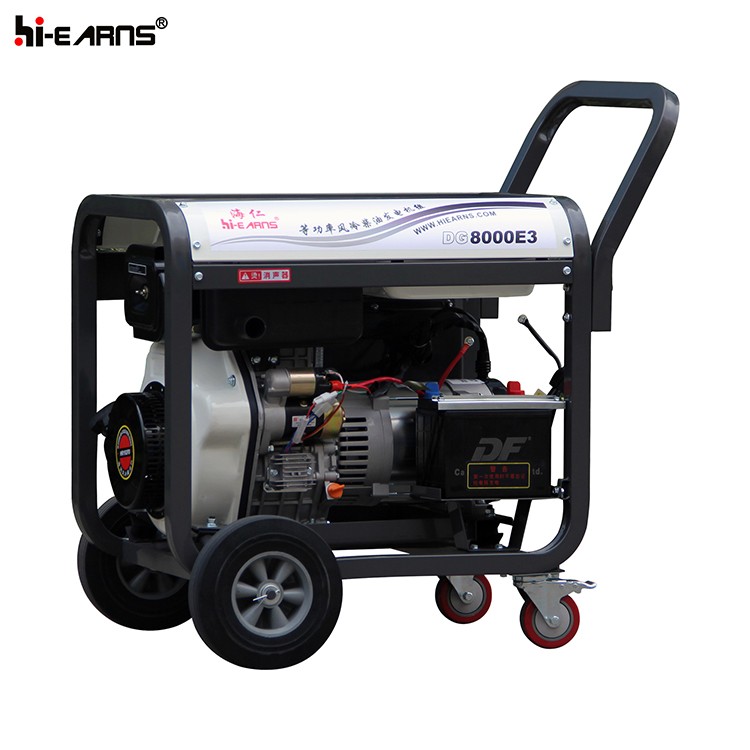

6KW diesel generator with equal power output for single and three phase voltage
Brief introduction：
* 6KW rated output;
* Portable model with wheels and handle;
* 192Fb diesel engine;
* copper wire alternator
E-mail: smart@kubaoya.com
Follow us:
Inquiry Now

GENERATOR	Model	DG8000E3
	Frequency(HZ)	50	60
	Max. output(kw)	6.5	7.0
	Rated output(kw)	6.0	6.5
	Rated. AC voltage(v)	120, 220, 230, 240,380,400,415
	Power factor(cosΦ )	cosΦ =1
	DC output (v)	12V/8.3A
	Phase	Single phase/ three phase
	Alternator type	self-excited, 2-pole, single phase alternator
	Starting system	Electric
	Operating noise level(at 7m)	80~85
	Fuel tank capacity(L)	12.5
	Continues work(hr)	6.5	6
ENGINE	Model	HR192FD
	Engine type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
	Bore× stroke(mm)	92×75
	Fuel	0# or -10# light diesel fuel
	Lubrication oil volume(L)	1.65
	Combustion system	Direct lnjection
STANDARD FEATURES	Voltmeter	yes
	AC Output Socket	2
	AC circuit breaker	yes
	Oil warning light	yes
	Oil alert	yes
OPTIONAL FEATURES	DC circuit breaker	optional
	Calculagraph	optional
	Big Wheel	optional
	Three phase voltage	optional
	Current meter	optional
	ATS	optional
	Remote control	optional
	Welding	optional
DIMENSIONS	Dimension(L× W× H)(mm)	755× 520×630
	Net weight(kg)	114
	20FT	124
