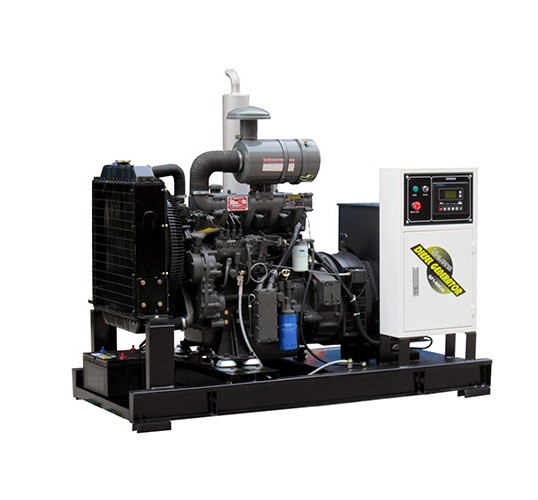

50KVA generator brushless alternator
Brief introduction：
50KVA diesel generator diesel for sale turbine generator
Use good brand chinese engine, brushless alternator
Full bottom fuel tank, big fuel tank, low consumption
We are factory, have low price s...- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now
50KVA diesel generator diesel for sale turbine generator
♦ Use good brand chinese engine, brushless alternator
♦ Full bottom fuel tank, big fuel tank, low consumption
♦ We are factory, have low price spare parts and timely technical support
| Voltage | Frequency (HZ) | Phase | P.F | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 440/254 | 50 | 3 | 0.8 | 74 | 45/56 | 40/50 |
| 415/240 | 50 | 3 | 0.8 | 78 | 45/56 | 40/50 |
| 400/230 | 50 | 3 | 0.8 | 81 | 45/56 | 40/50 |
| 380/220 | 50 | 3 | 0.8 | 85 | 45/56 | 40/50 |
Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. | ||||||
Prime Power(PRP)：Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97 (eqv ISO8528); A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation. | ||||||
| ENGINE DATA | ||||||
| Engine Type | Yuchai Engine YC4FA75L-D2 | |||||
| Shape | Straight 4 cylinder | |||||
| Bore×Stroke (mm) | 96×103 | |||||
| Power/Speed (KW/r/min) | 50 / 1500 | |||||
| Intake Type | Charge inter-cooling | |||||
| Adjust Speed Type | Electronic Speed Controller | |||||
| Engine output end specification--Flywheel case | SAE3# | |||||
| Engine output end specification--Flywheel | SAE11.5〞 | |||||
| Dimension （mm) | 960×620×890 | |||||
| Weight （kgs) | 370 | |||||
| ALTERNATOR DATA | ||||||
| Alternator Data | ||||||
| Power Factor | 0.8 Lag | |||||
| Insulation Class | H | |||||
| Lubricating System | Pressure,Split,Complex | |||||
| exhaust Air Temperature (℃) | ≤600 | |||||
| Altitude | ≤1000m | |||||
| Environment Temperature (℃) | 40 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Ignite sequence | 1-3-4-2 | |||||
| Rated Speed Regulation % | ≤±1% | |||||
| Phase | 3 | |||||
| Dimension Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size :1.98(m)×0.84(m)×1.06(m) | Overall Size:2.15(m)×0.97(m)×1.37(m) | |||||
| Weight ：950kg | Weight：1120kg | |||||
♦We are manufactory covering diesel and gasoline engine, diesel generator from 2-1000KW, water pump, trash pump, construction machinery like vibrator, rammer, compactor, concrete cutter, power trowel, farm machinery and so on
♦Use famous brand spare parts
♦ISO, CE, GS approved supplier
♦One year warranty, complete spare parts for after-sales services
♦Low price with good quality, reliable performance
♦Easy to start and operate, convenient to move
♦Low fuel consumption, easy maintenance
♦Our logo or OEM
Advantages
♦ Economic and practical products from hi-earns,reliable performance.
♦ Choose hi-earns,choose a rest assured.
♦ Advanced production lines and test rooms.
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
Automatic Workshop
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
♦ Test engine at least twice before ex-factory.
Packaging Shipping
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
Companycertificates
♦ Modern office building, we warmly welcome your visiting.
♦ We attend exhibitions domestic and overseas. Rich activities to improve work enthusiasm.
♦ ISO, CE, GS, Rohs certificates. We have been making good progress.
