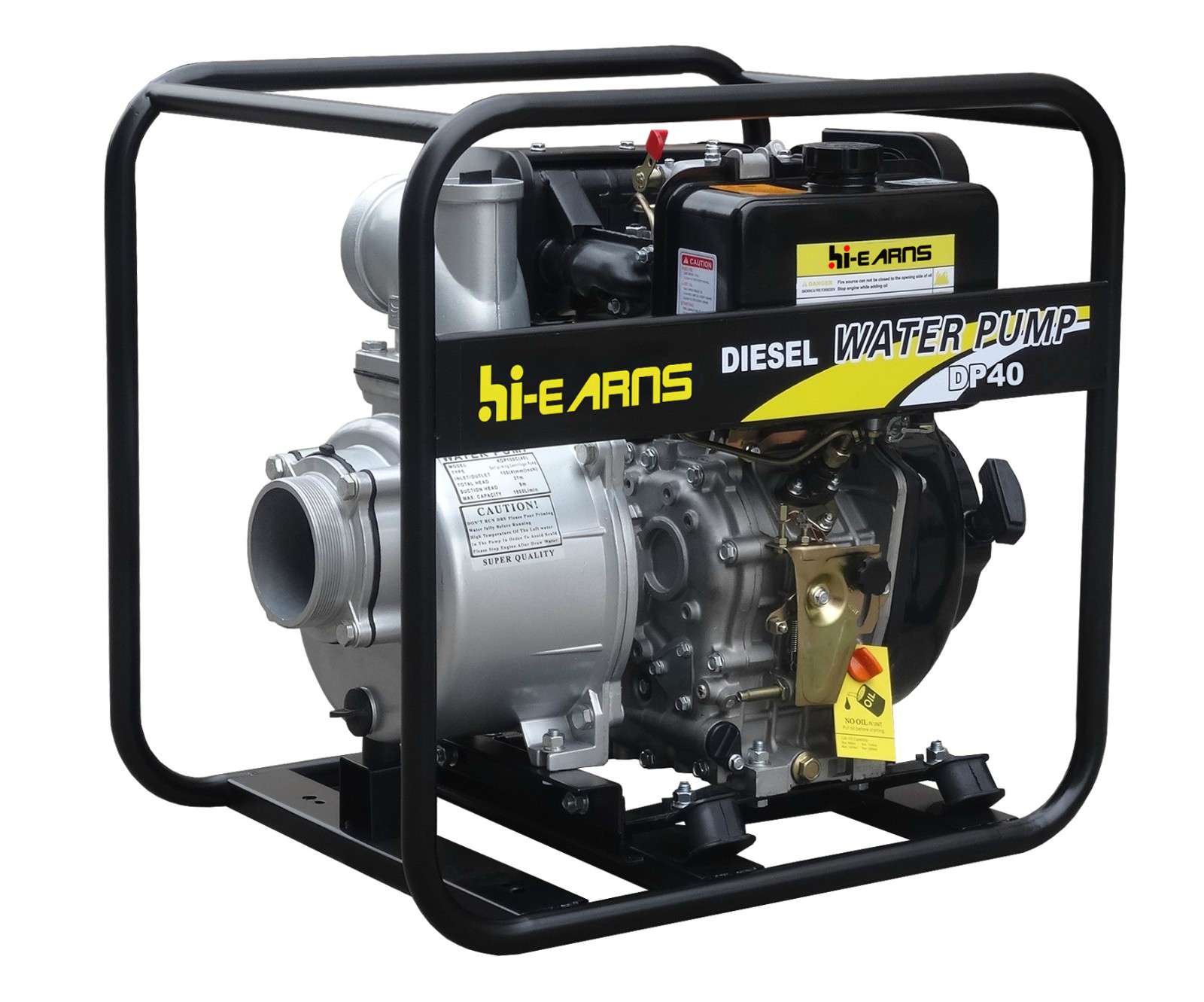

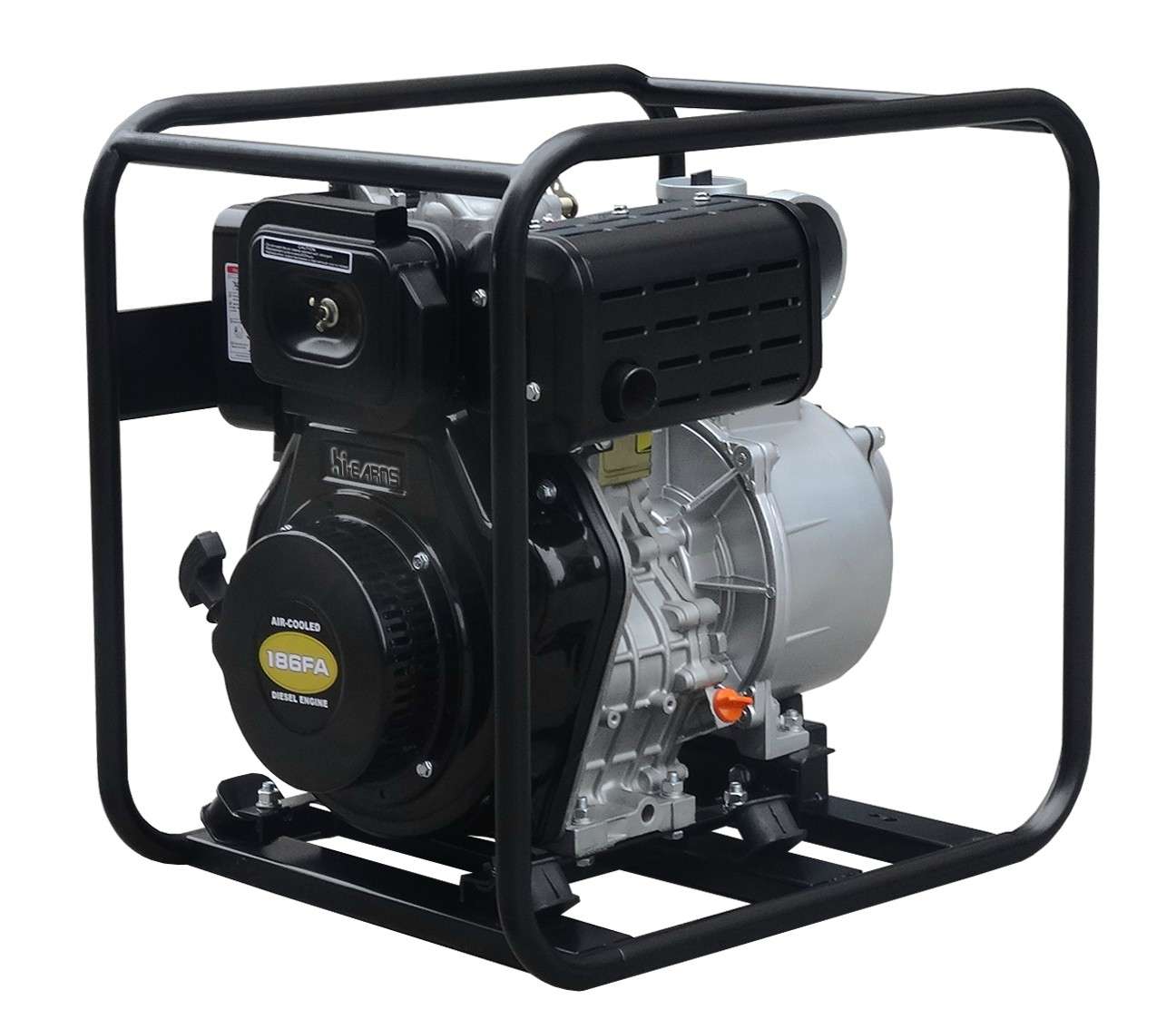

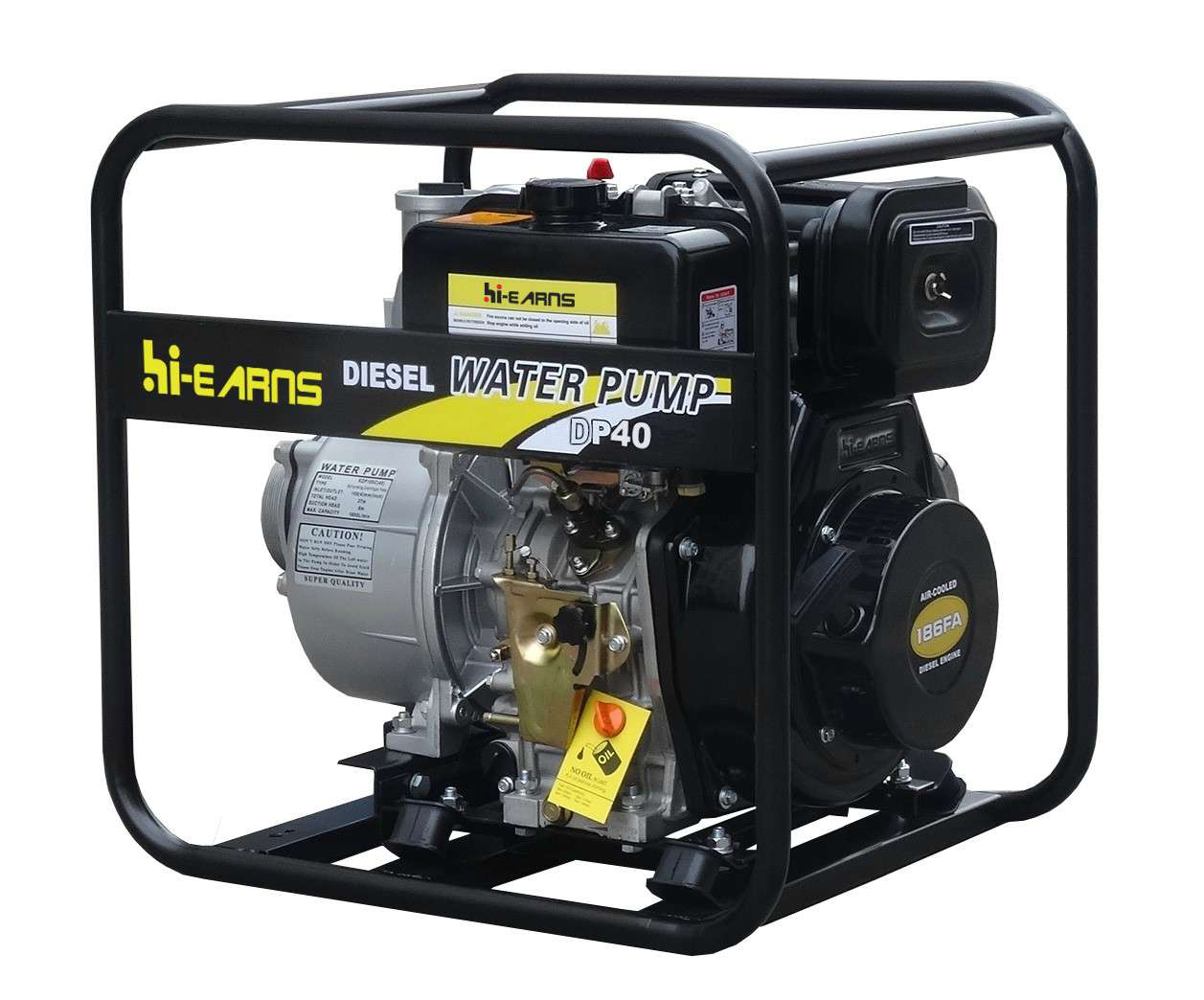

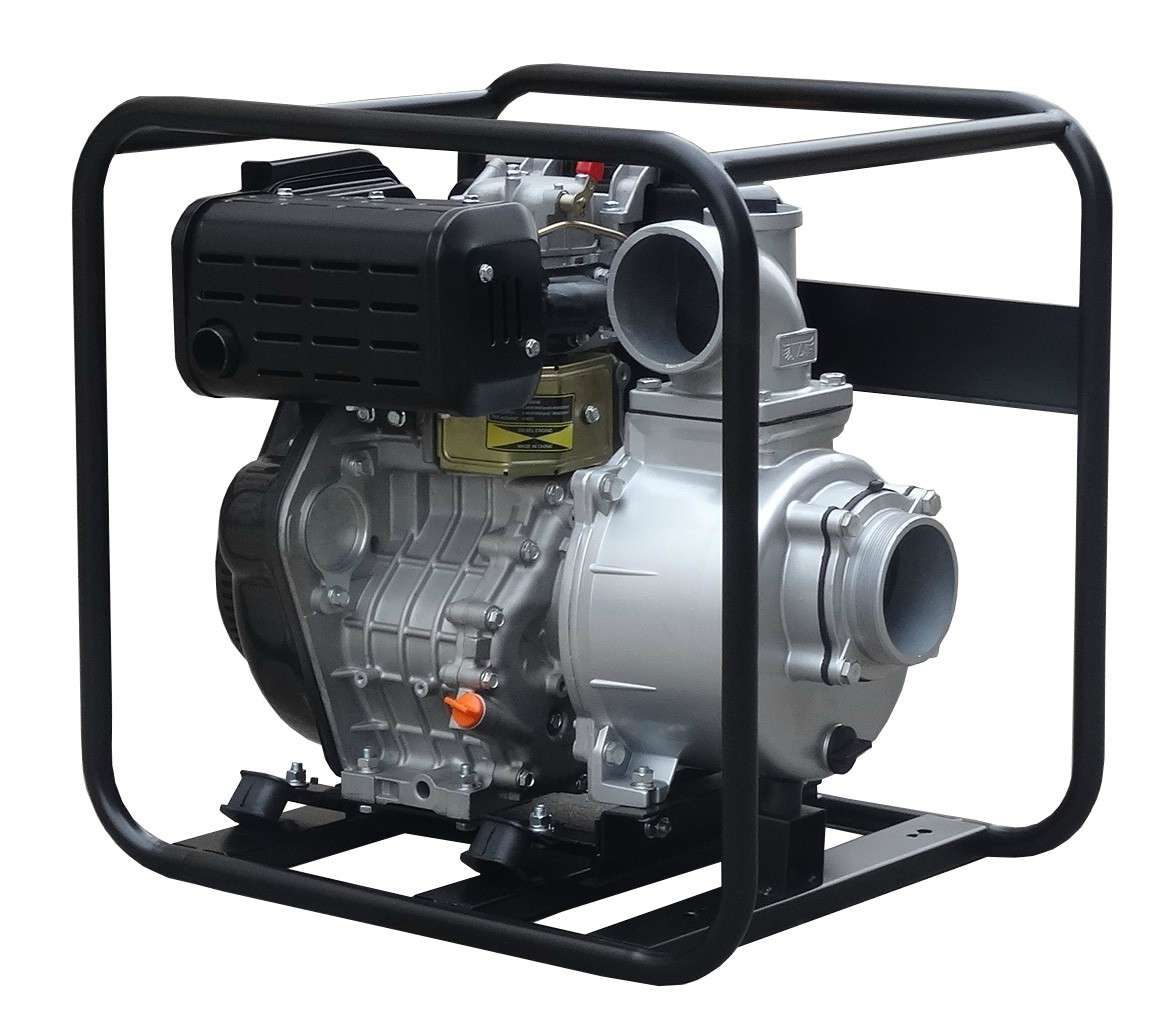

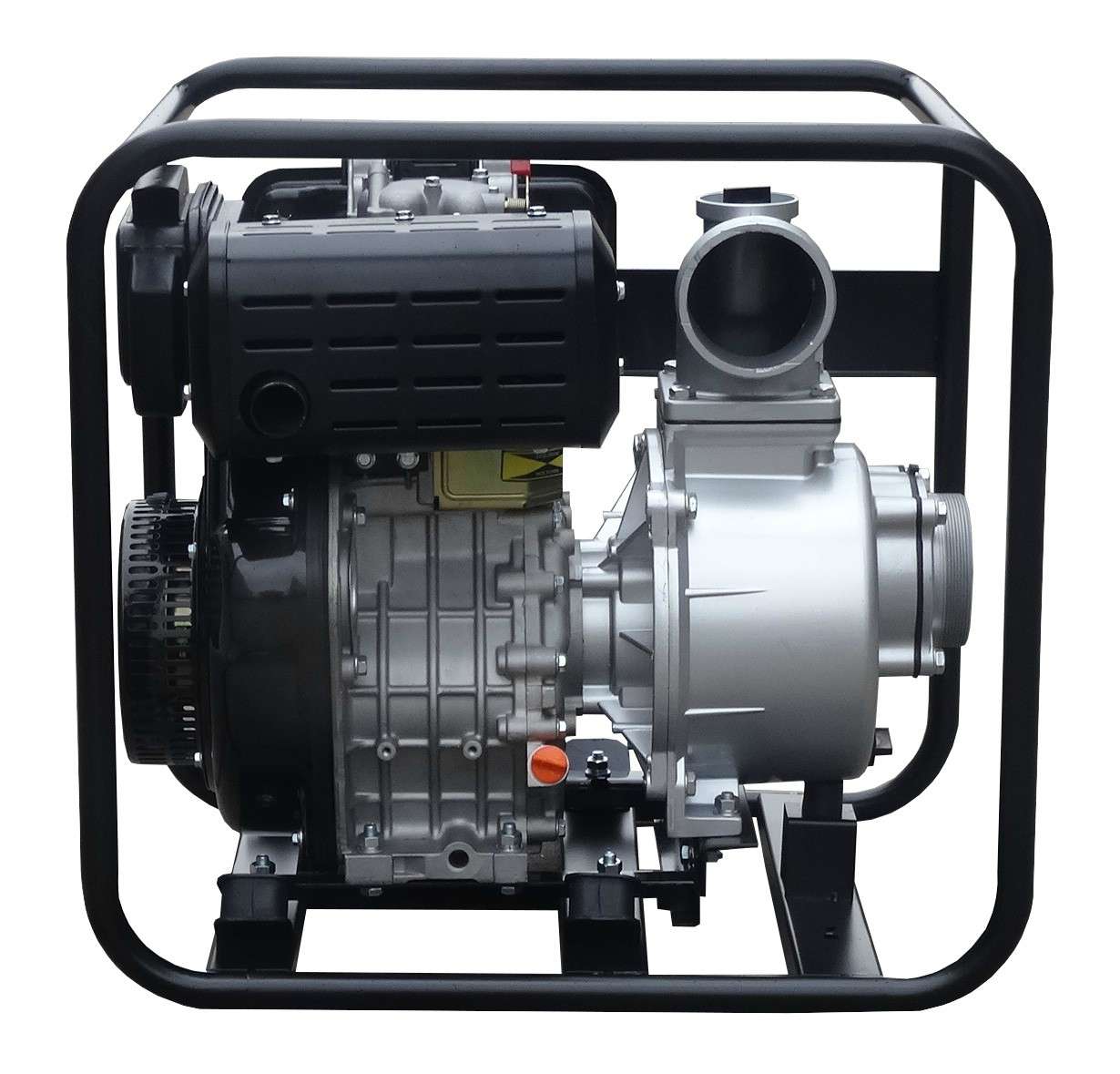

4 inch agricultural diesel water pumps DP40
Brief introduction：
made in china
Diesel power
More secure
Carton packing
Colors available
Warranty for one year- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now

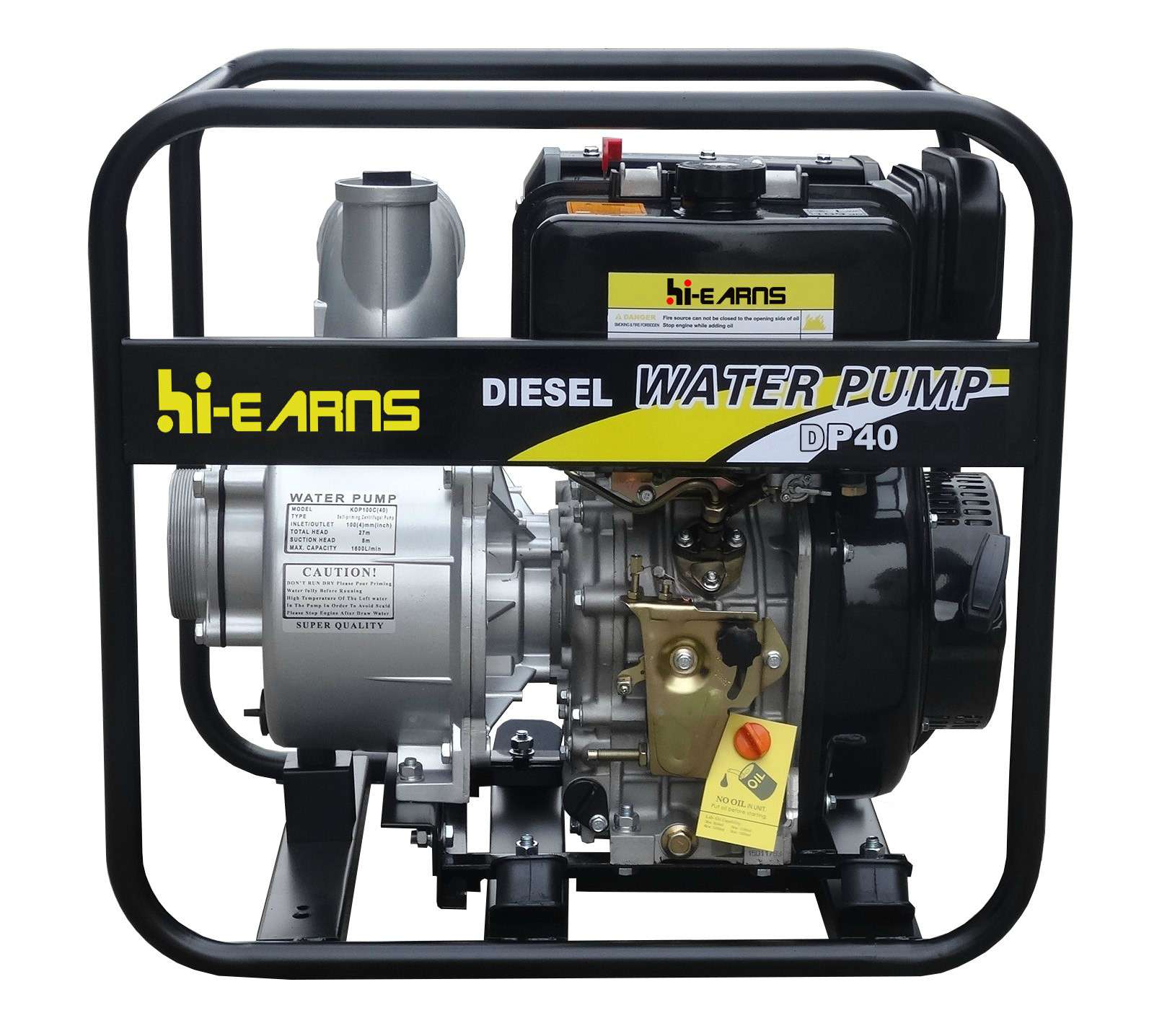

4 inch agricultural diesel water pumps DP40
| WATER PUMP | Model | DP40 | |
| Suction,discharge port diameter[mm(in)] | 100(4#39;) | ||
| Cont.head(m) | 31 | ||
| Self-priming time(s/4m) | 180 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 96 | ||
| ENGINE | Engine model | HR186FA | |
| Speed(rpm) | 3600 | ||
Displacement(cc) | 418 | ||
Bore*stroke(mm) | 86*72 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 5.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 655×485×620 | |
| Net weight(kg) | 68 | ||
| 20FT | 105 | ||
