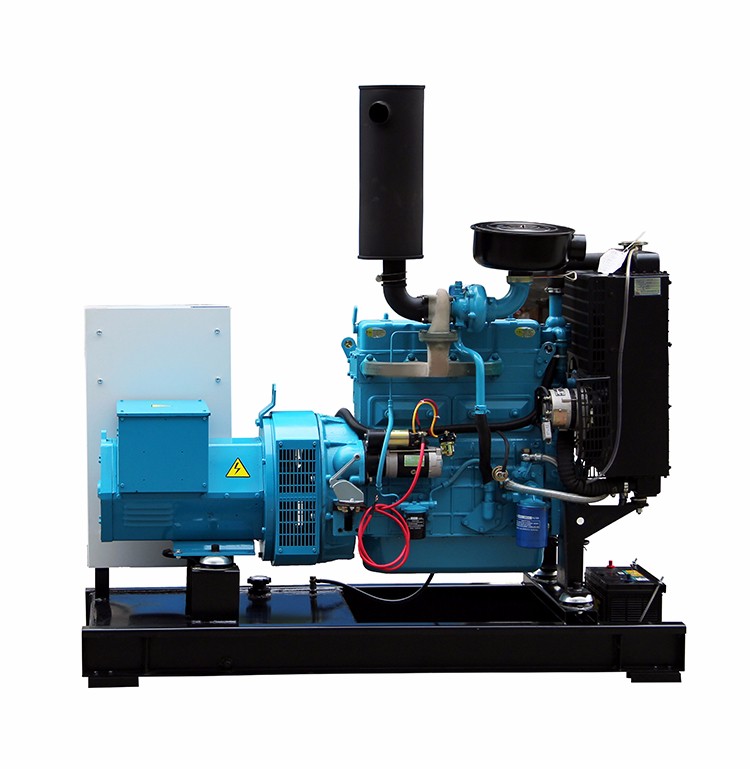

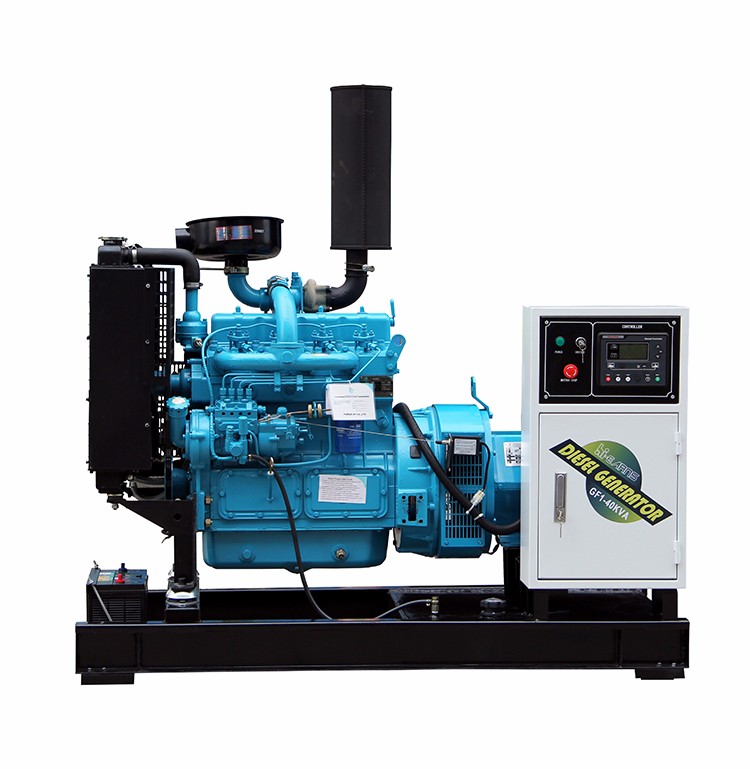

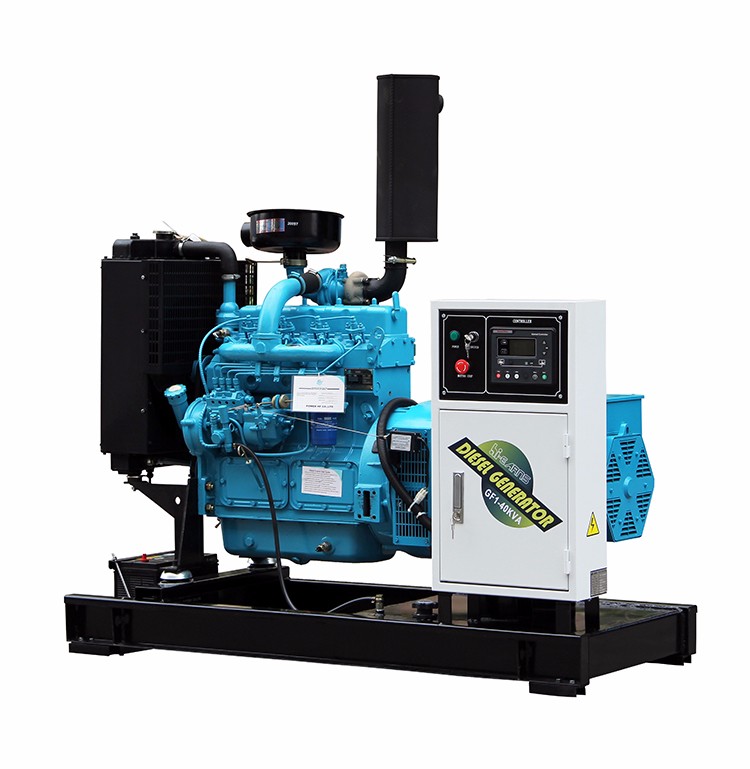

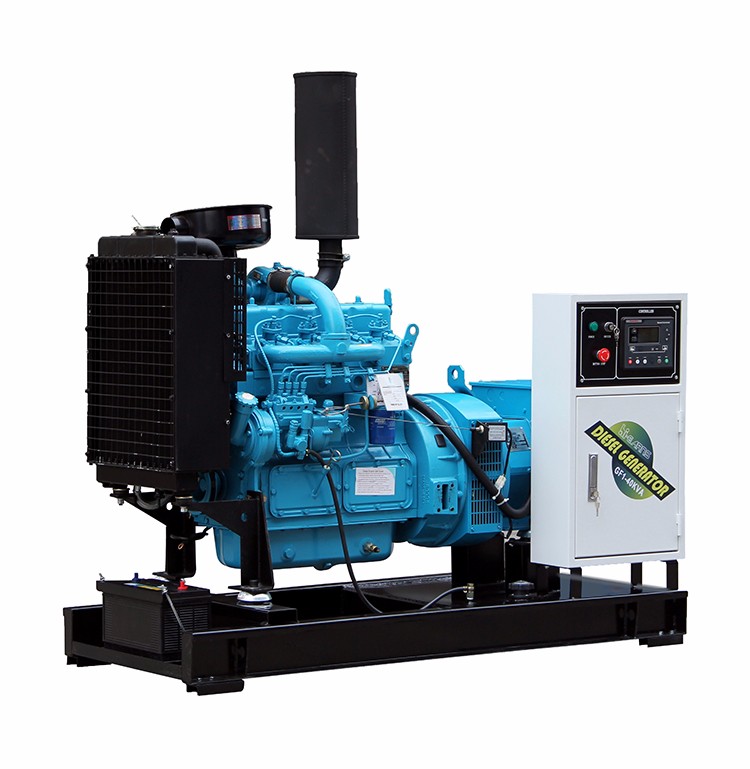

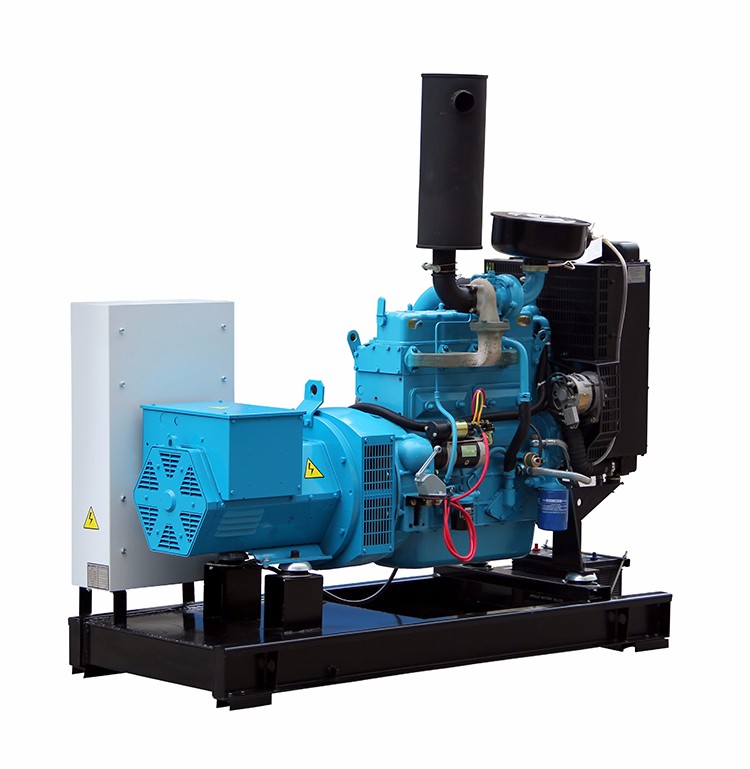

30KW four cylinder chinese engine diesel generator
Brief introduction：
Low consumption, competitive price, short delivery time, strong and stable power, best after-sale service
Electric start, Smartgen digital panel- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now
| Voltage | Frequency (HZ) | Phase | P.F(COS) | Standby Amps | Standby Ratings (KW/KVA) | Prime Ratings (KW/KVA) |
| 440/254 | 50 | 3 | 0.8 | 52 | 32/40 | 30/38 |
| 415/240 | 50 | 3 | 0.8 | 56 | 32/40 | 30/38 |
| 400/230 | 50 | 3 | 0.8 | 58 | 32/40 | 30/38 |
| 380/220 | 50 | 3 | 0.8 | 61 | 32/40 | 30/38 |
Standby Power Rating(ESP):The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this rating. | ||||||
Prime Power(PRP)：Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97 (eqv ISO8528); A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation. | ||||||
| ENGINE DATA | ||||||
| Engine Type | Yuchai Engine YC4FA55Z-D20 | |||||
| Shape | Straight 4 cylinder | |||||
| Bore×Stroke (mm) | 96×103 | |||||
| Power/Speed (KW/r/min) | 36.8 / 1500 | |||||
| Intake Type | Pressurize | |||||
| Adjust Speed Type | Electronic Speed Controller | |||||
| Engine output end specification--Flywheel case | SAE3# | |||||
| Engine output end specification--Flywheel | SAE11.5〞 | |||||
| Dimension（mm) | 960×620×890 | |||||
| Weight （kgs) | 370 | |||||
| ALTERNATOR DATA | ||||||
| Alternator Data | ||||||
| Power Factor | 0.8 Lag | |||||
| Insulation Class | H | |||||
| Lubricating System | Pressure,Split,Complex | |||||
| exhaust Air Temperature (℃) | ≤540 | |||||
| Altitude | ≤1000m | |||||
| Environment Temperature (℃) | 40 | |||||
| Connecting Type | 3 Phase and 4 Wires,"Y" type connecting | |||||
| Ignite sequence | 1-3-4-2 | |||||
| Intake Type | pressurize | |||||
| Rated Speed Regulation % | ≤±1% | |||||
| Phase | 3 | |||||
| Dimension Weight | ||||||
| Open Type | Soundproof Type | |||||
| Overall Size:1.98(m)×0.84(m)×1.06(m) | Overall Size:2.1(m)×0.85(m)×1.24(m) | |||||
| Weight ：746kg | Weight ：806kg | |||||
