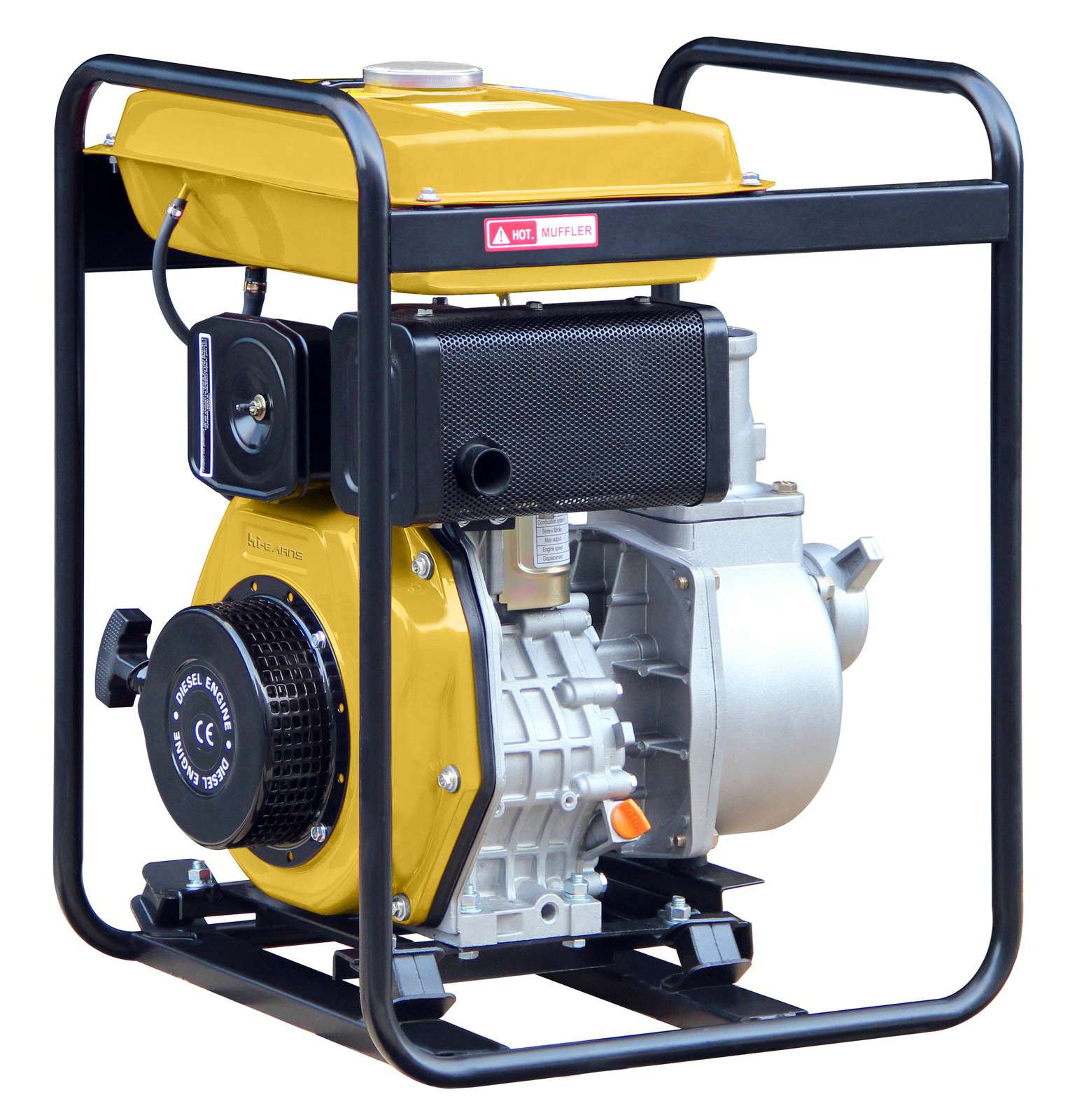

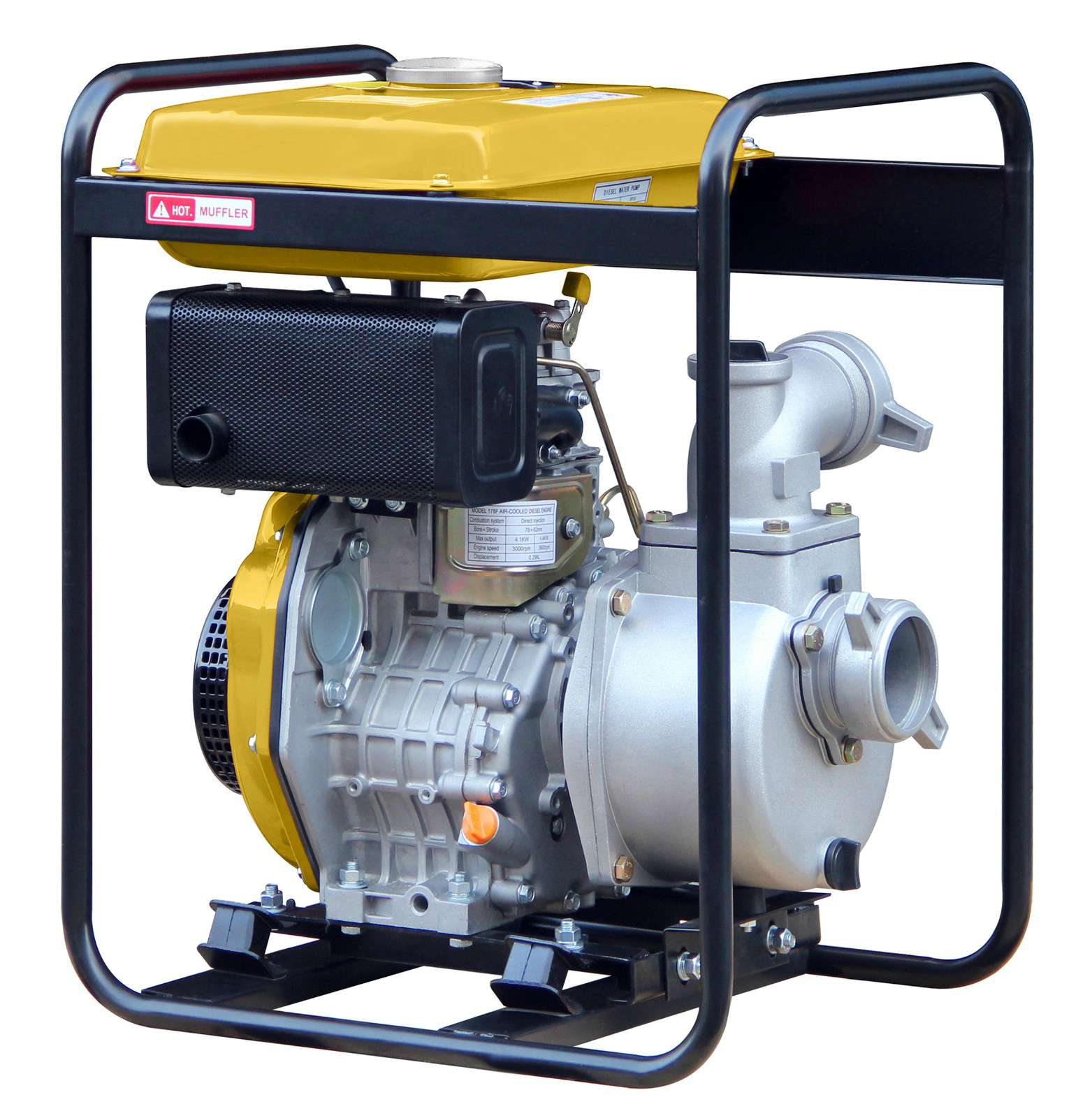

3 inch farm irrigation water pump
Brief introduction：
made in china
Diesel power
More secure

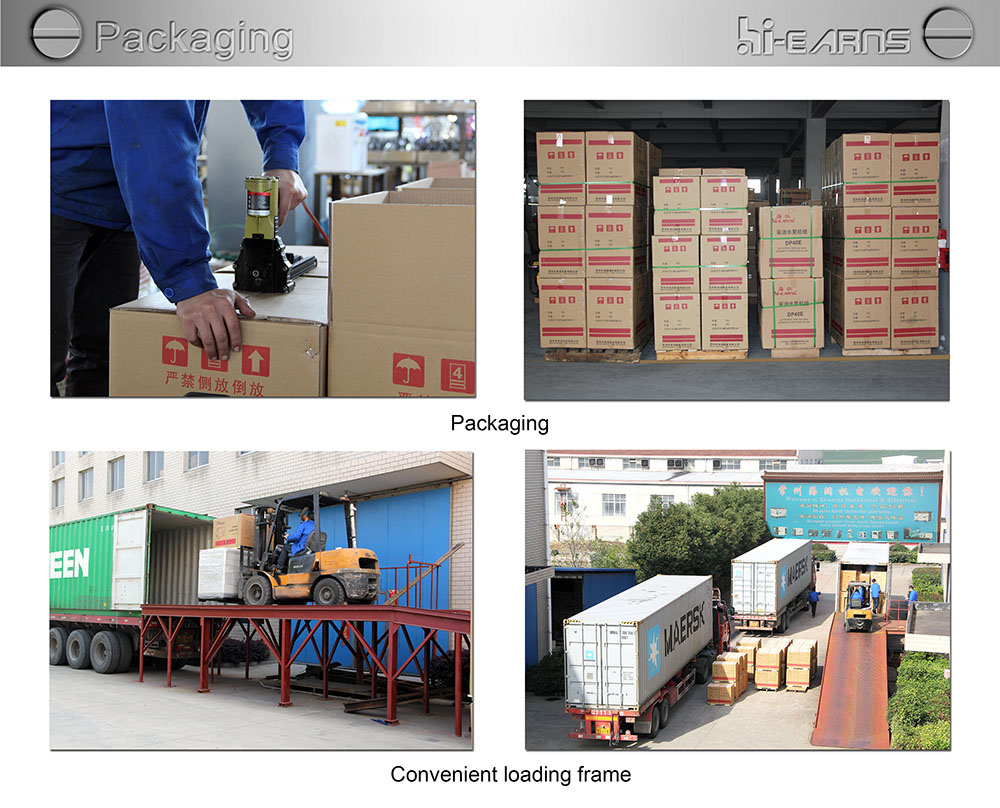

Carton packing
Colors available
Warranty for one year- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now

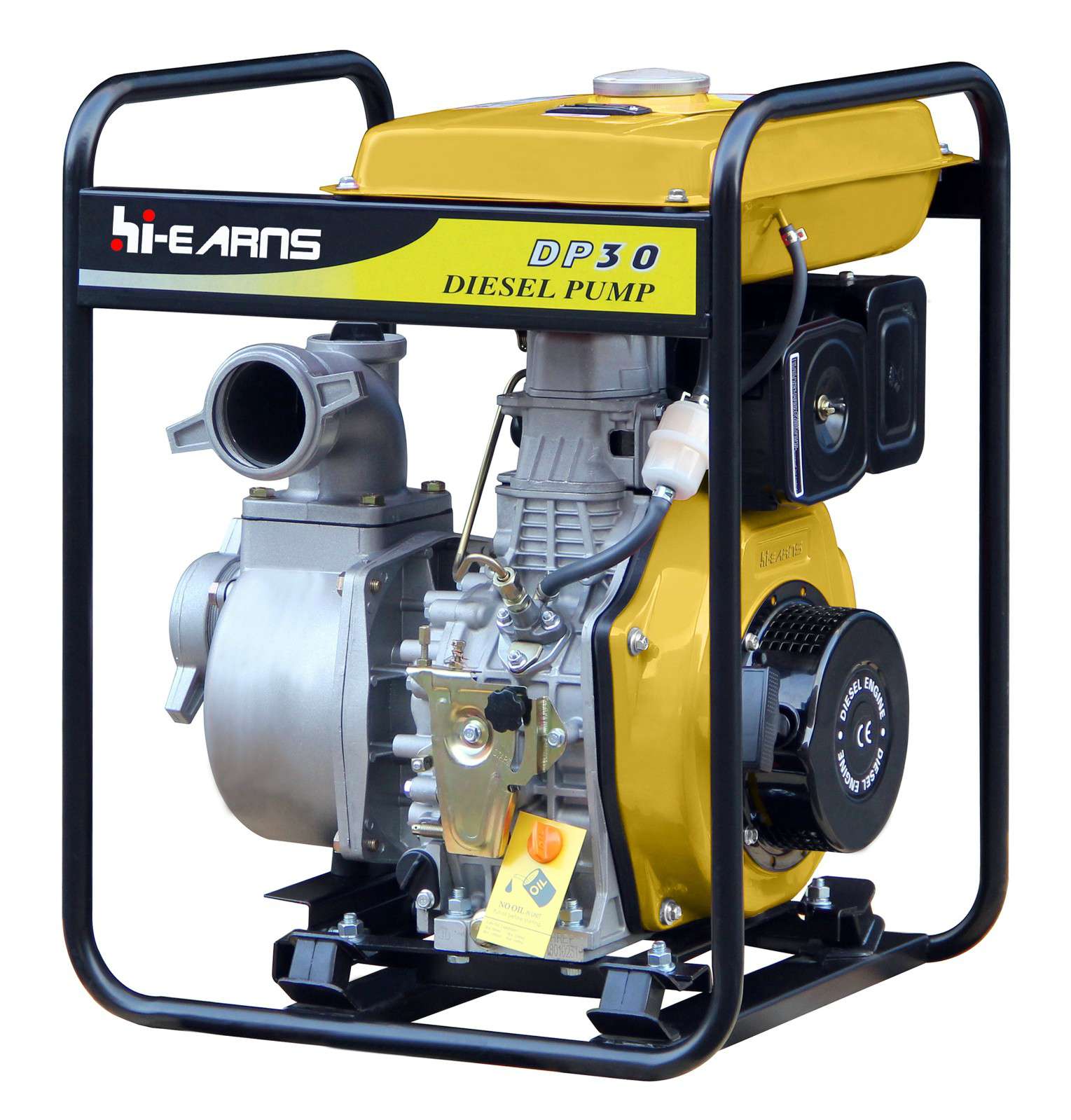

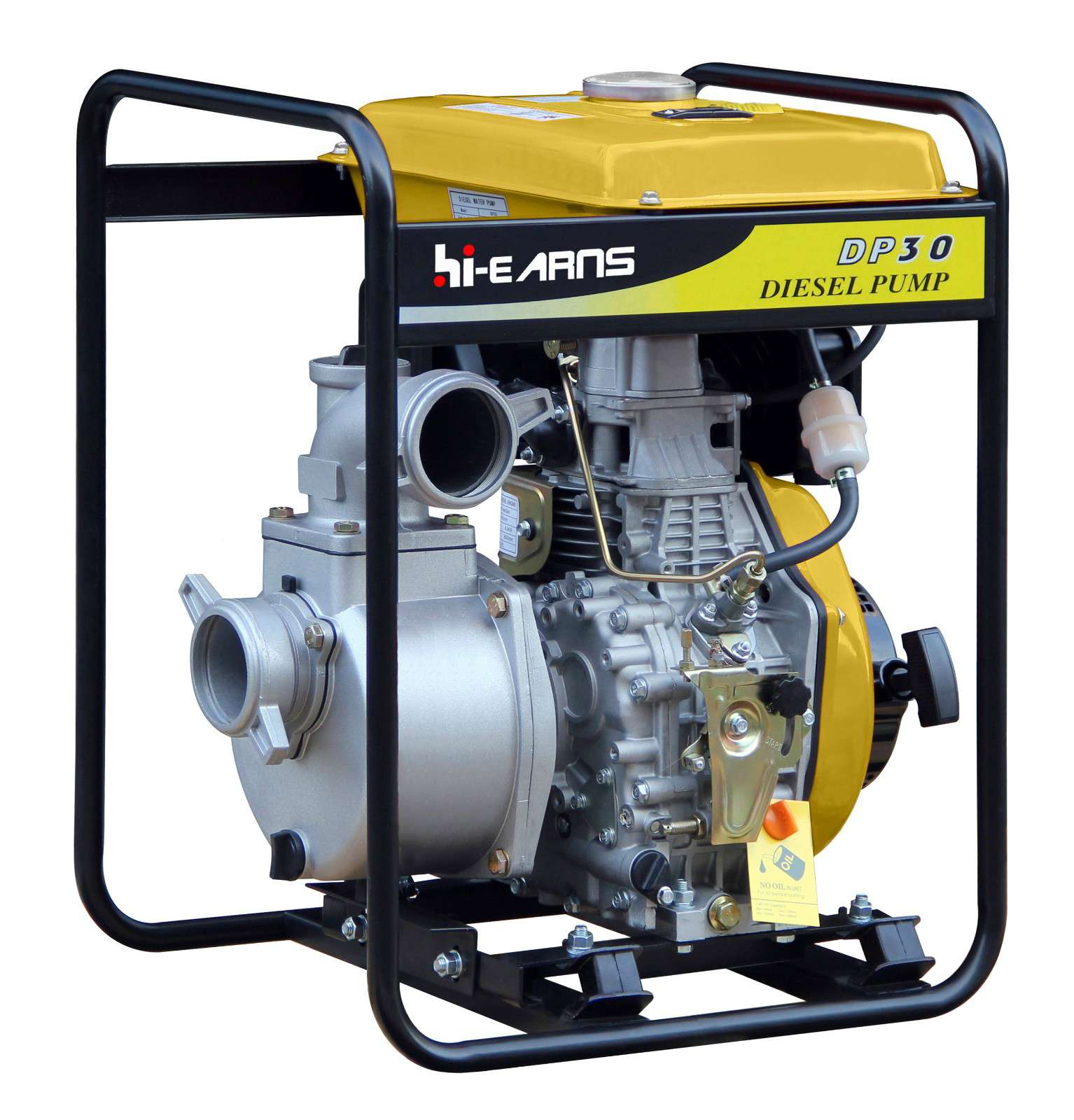

3 inch farm irrigation water pump
♦ Use good brand spare parts, big cont. head
♦ Portable type, easy to move and lifting
♦ We are factory, have low price spare parts and timely technical support
| WATER PUMP | Model | DP30 | |
| Suction,discharge port diameter[mm(in)] | 80(3#39;#39;) | ||
| Cont.head(m) | 28 | ||
| Self-priming time(s/4m) | 120 | ||
| Max suction head(m) | 8 | ||
| Cont.capacity(m³/hr) | 50 | ||
| ENGINE | Engine model | HR178F | |
| Speed(rpm) | 3600 | ||
| Fuel consumption(g/kw.h) | 295 | ||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
Displacement(cc) | 296 | ||
Bore*stroke(mm) | 78*62 | ||
Starting system | Recoil or Electric | ||
| Fuel tank capacity(L) | 12.5 | ||
| STANDARD FEATURES | Oil alert | yes | |
| Connector of infall,Connecto of outfall | yes | ||
| Filter | yes | ||
| Seal ring | yes | ||
| Hoop | yes | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 540×480×720 | |
| Net weight(kg) | 52 | ||
| 20FT | 144 | ||
