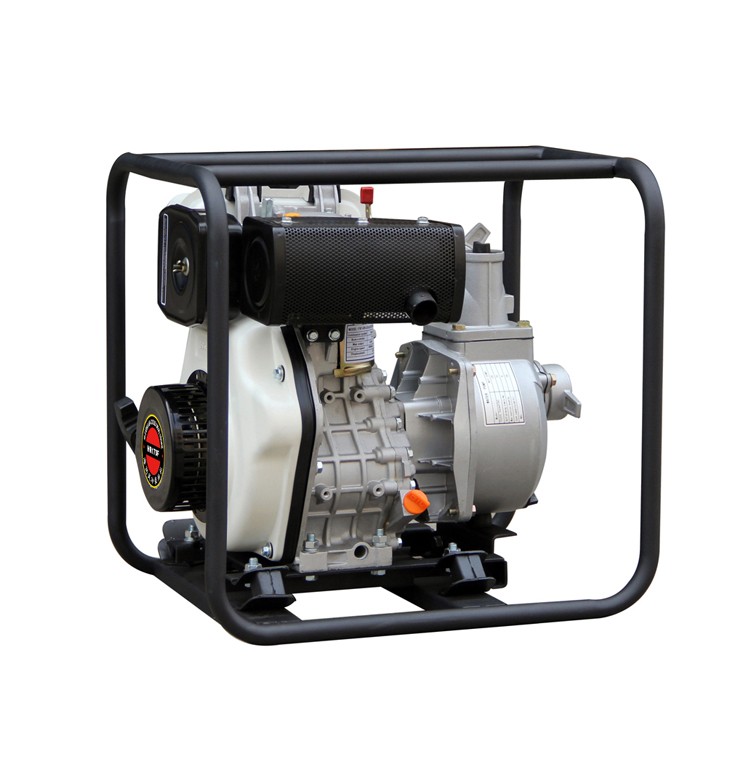

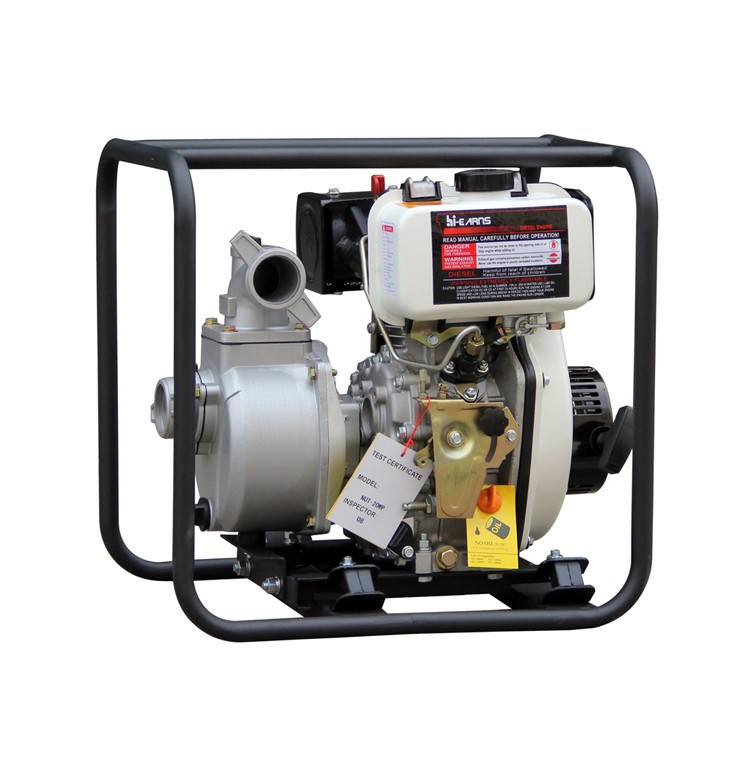

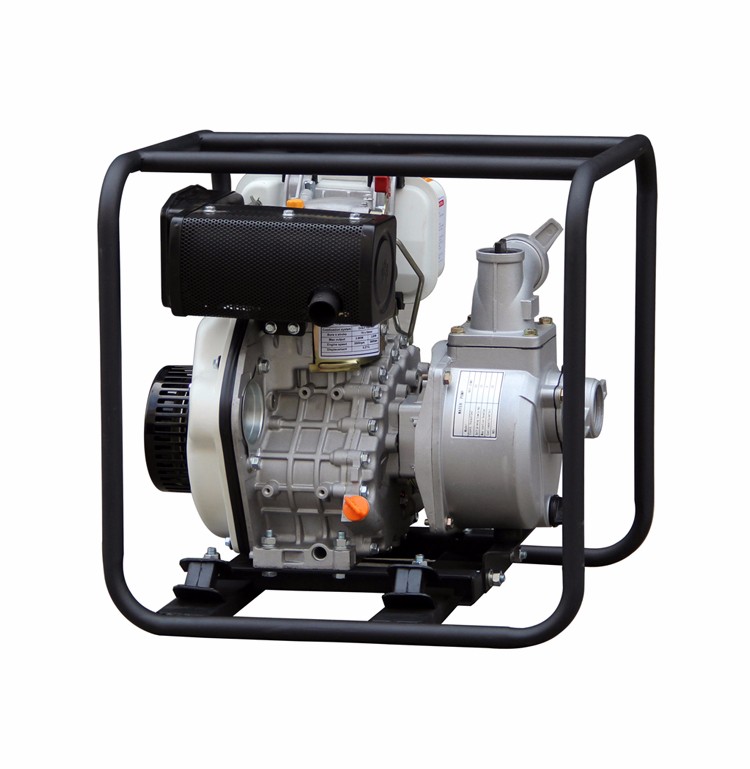

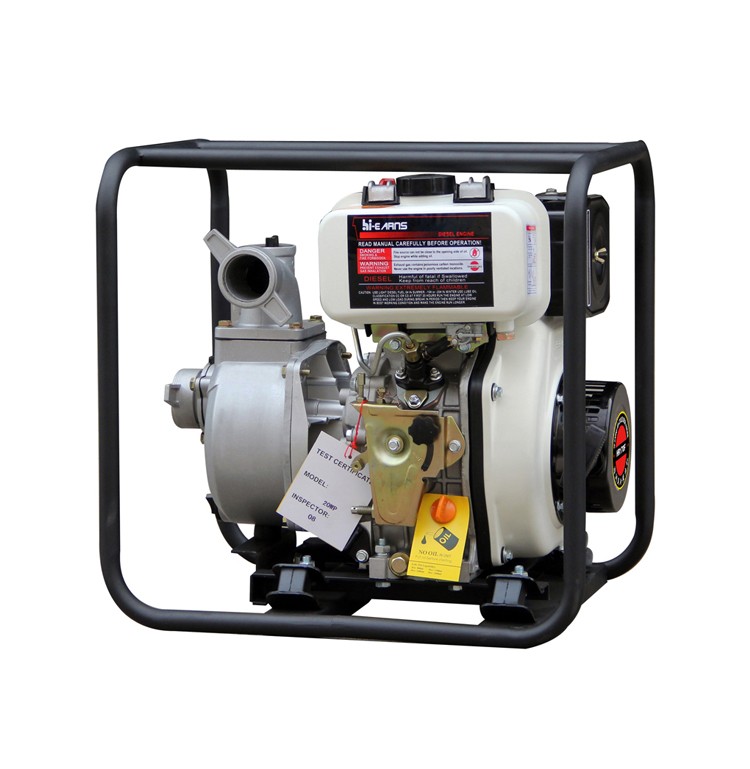

2 inch water pump

2#39; Diesel water pump

WATER PUMP	Model	DP20
	Suction,discharge port diameter[mm(in)]	50(2#39;)
	Cont.head(m)	26
	Self-priming time(s/4m)	70
	Max suction head(m)	8
	Cont.capacity(m³/hr)	36
ENGINE	Engine model	HR170F
	Speed(rpm)	3600
	Fuel consumption(g/kw.h)	280
	Fuel	Single-cylinder,vertical,4-stroke air-cooled diesel engine
	Displacement(cc)	211
	Bore*stroke(mm)	70*55
	Starting system	Recoil or Electric
	Fuel tank capacity(L)	2.5
STANDARD FEATURES	Oil alert	yes
	Connector of infall,Connecto of outfall	yes
	Filter	yes
	Seal ring	yes
	Hoop	yes
DIMENSIONS	Dimension(L× W× H)(mm)	490×420×530
	Net weight(kg)	38
	20FT	240
