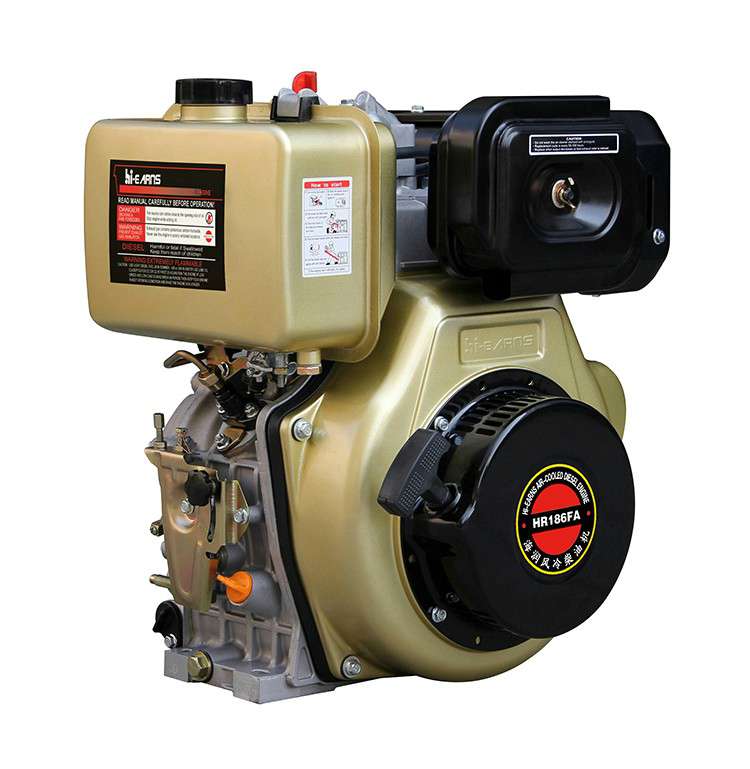

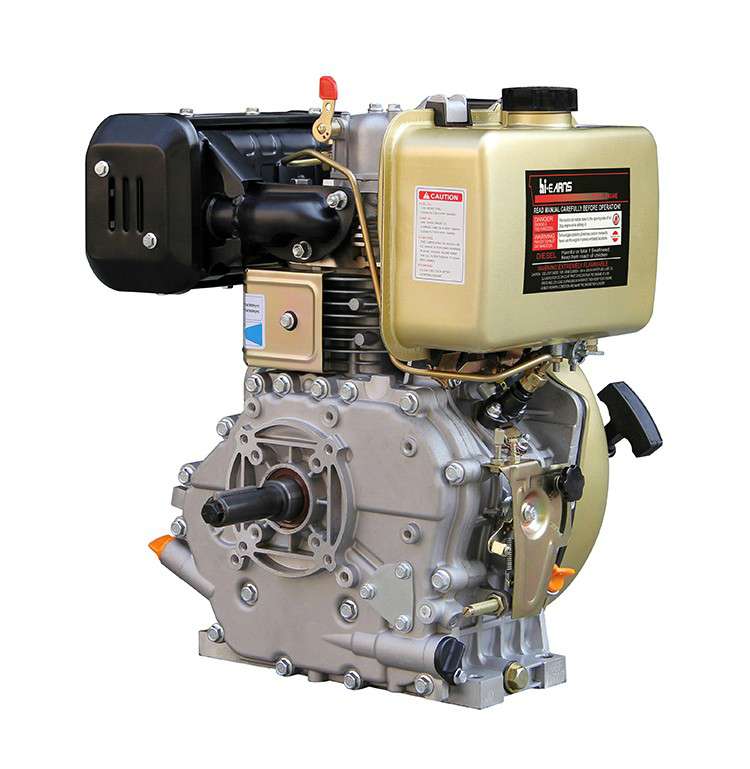

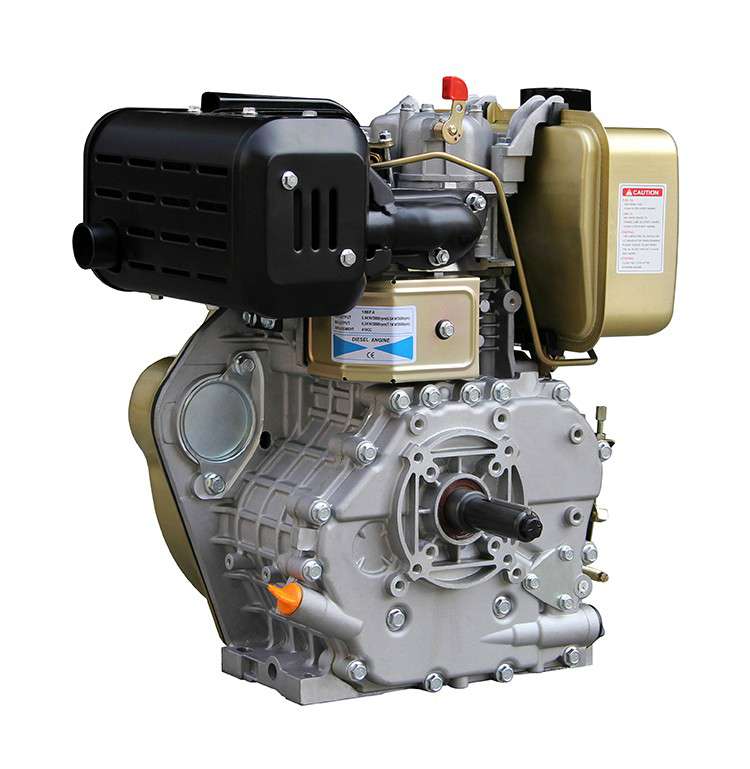

186FA single cylinder 4-stroke air-cooled engine
Brief introduction：
Diesel, cheaper, safer, more colorful, better performance
packing:carton
One 20FT can load 176pcs
One 40HQ can load 384pcs- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now
186FA single cylinder 4-stroke air-cooled engine
| 186FAS AIR-COOLED DIESEL ENGINE SERIES | ||
| Model | HR186FA | |
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | |
| Combustion System | Direct Injection | |
| Bore×Stroke (mm) | 86×72 | |
| Displacement capacity (cc) | 418 | |
| Speed (rpm) | 3000 | 3600 |
| Max.output (kw) | 6.5 | 7.1 |
| Rated output (kw) | 5.9 | 6.5 |
| Fuel | o# or-10# light diesel oil | |
| Fuel oil tank volume (l) | 5.5 | |
| Lubricatiom oil volume (l) | 1.65 | |
| Fuel oil consumption rate (g/kw.h) | 280 | |
| Starting system | Recoil or Electric | |
| PTO rotation direction | It is clockwise as viewing from the flywheel end | |
| Dimension (mm) | 520x490x570 | |
| Gross weight (kg) | 45 | |
| 20FT QTY | 176 | |
