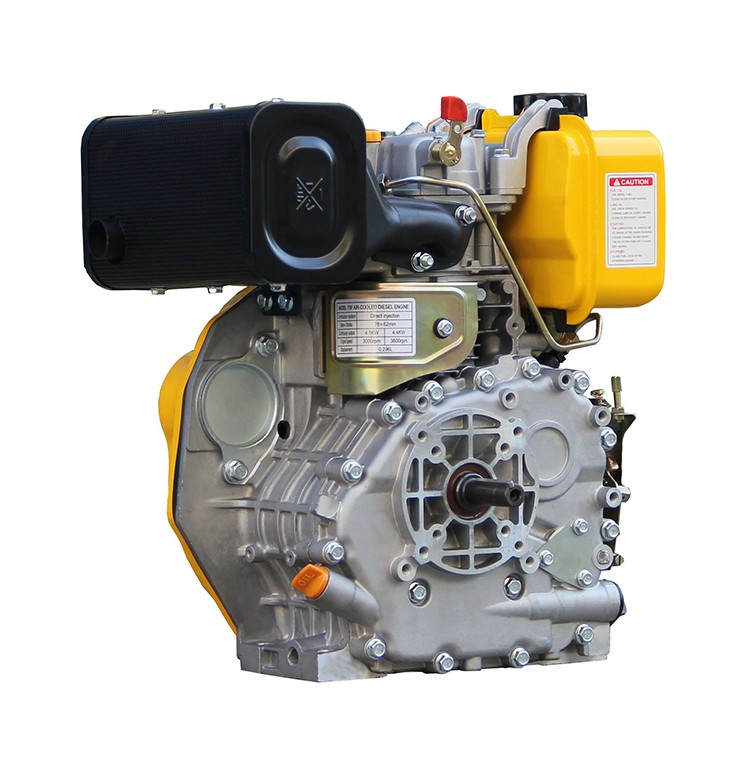

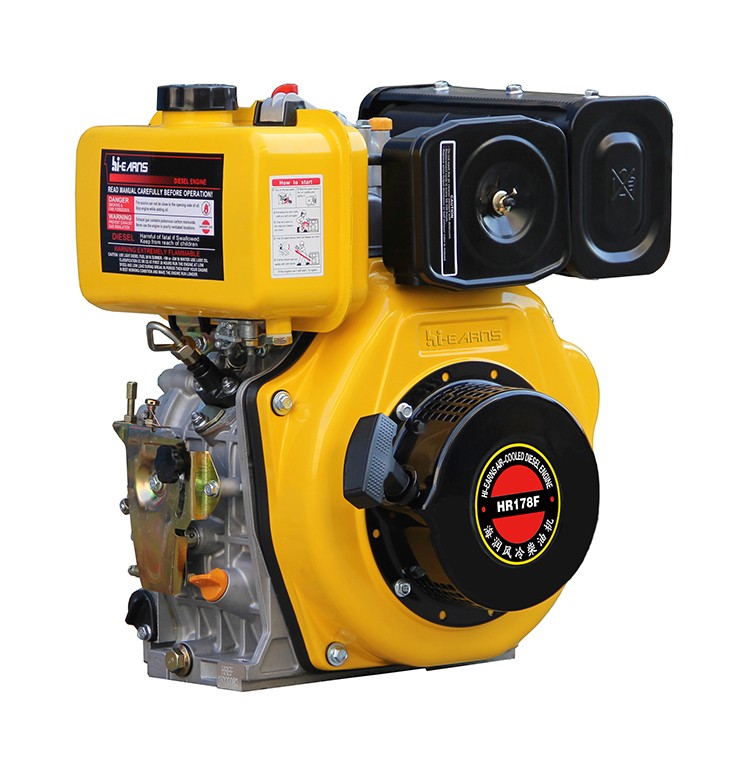

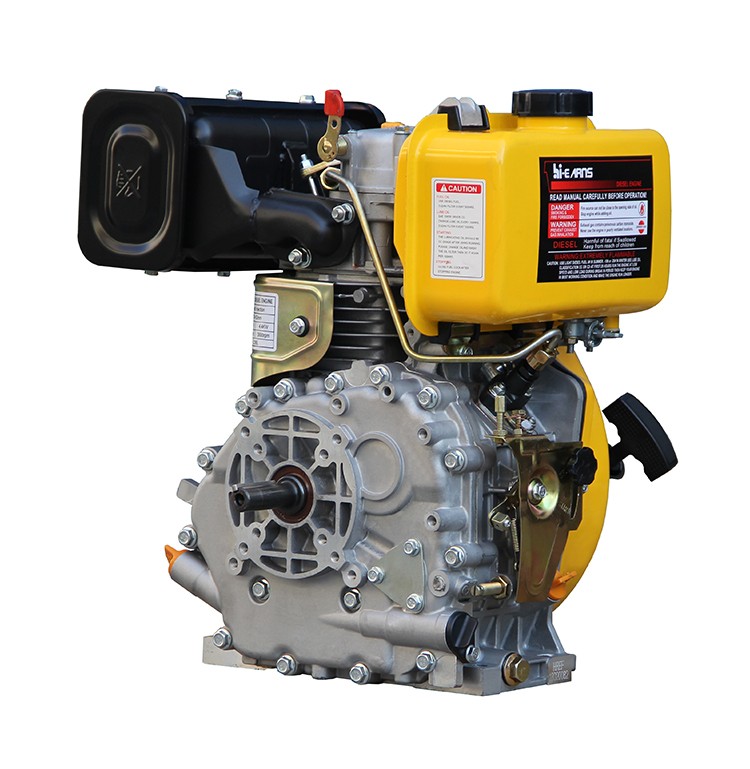

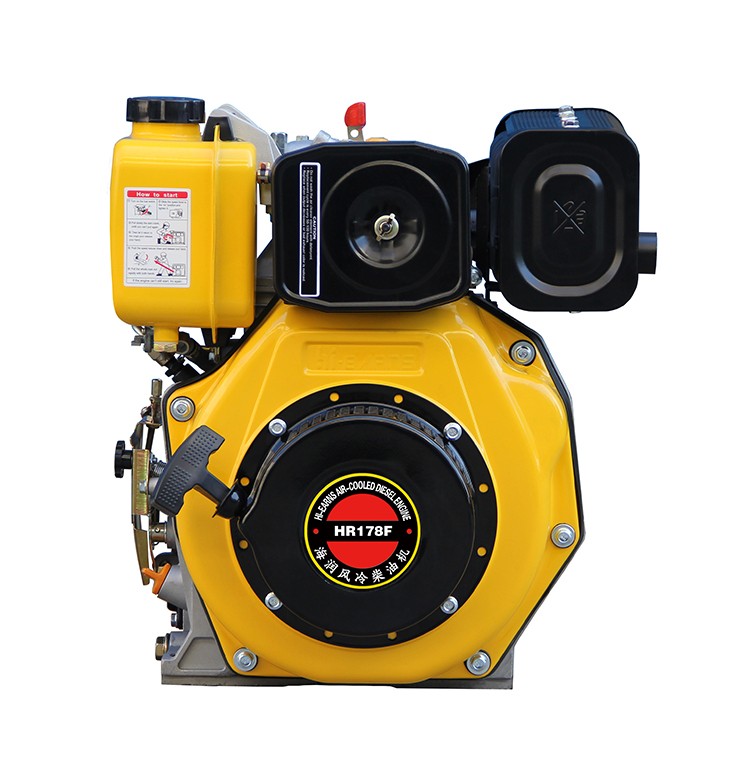

178FE 6hp diesel engine with electrical start
Brief introduction：
Usage: Military generator,water pump,tiller,constryction machinery,washer and so on
Fuel: Diesel
Stroke: 4 Stroke
Cylinder: Single Cylinder Cold
Style: Air-cooled
Start: electric start
Plac...- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now
178FE 6hp diesel engine with electrical start
| 178F AIR-COOLED DIESEL ENGINE SERIES | ||
| Model | HR178F | |
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | |
| Combustion System | Direct Injection | |
| Bore×Stroke (mm) | 78×62 | |
| Displacement capacity (cc) | 296 | |
| Speed (rpm) | 3000 | 3600 |
| Max.output (kw) | 4.1 | 4.4 |
| Rated output (kw) | 3.7 | 4 |
| Fuel | o# or-10# light diesel oil | |
| Fuel oil tank volume (l) | 3.5 | |
| Lubricatiom oil volume (l) | 1.1 | |
| Fuel oil consumption rate (g/kw.h) | 295 | |
| Starting system | Recoil or Electric | |
| PTO rotation direction | It is clockwise as viewing from the flywheel end | |
| Dimension (mm) | 490×490×520 | |
| Gross weight (kg) | 34 | |
| 20FT QTY | 176 | |
IMMEDIATELY CONSULT
