15KVA silent diesel generator
Brief introduction：
Brand Name: hiearns super silent Water-cooled diesel generation 15KW generator Model Number: GF2-15KVA Output Type: AC Three Phase Speed: 1500rpm/1800rpm Frequency: 50/60HZ Rated Power: 15KW/KVA- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now

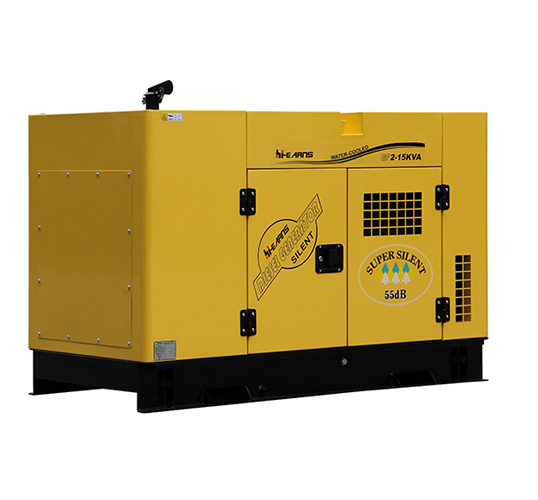

GF2-15KVA super silent 55DB home use water cooled generator
| Model | GF2-15KVA |
| Standby power (50HZ) | 13KW / 16KVA |
| Prime power (50HZ) | 12KW / 15KVA |
| Voltage (V) | 220/380V |
| Phase | 3 |
| Power factor (cosphi;) | 0.8 |
| Standby amps (A) | 25 |
| Engine type | Quanchai Engine N485D, 4-stroke, water-cooled, direct line |
| Rated RPM (r/min) | 1500rpm |
| Cooling system | Forced water-cooled |
| Fuel consumption (g/kw.h) | ≤ 245 |
| Rated speed regulation | ≤ 5 |
| Bore x stroke (mm) | 85 x 95 |
| Displacement (L) | 2.156 |
| Start Method | Electric start |
| Add oil capacity (L) | 4L |
| Alternator Data | |
| Power factor | 0.8 Lag |
| Insulation class | H |
| Lubricating system | Pressure, split, complex |
| Exciter type | Brushless, self-exciting |
| Altitude | ≤ 1000m |
| °C) | 40 |
| Connecting type | 3 phase and 4 wires, "Y" type connecting |
| Protection grade | IP23 |
| Intake type | Natually-Aspirated |
| Rated speed regulation % | ≤±1% |
| Phase | 3 |
| Overall size (m) | 1.7 x 0.85 x 1.02(m) |
| Weight (kg) | 658kg |
