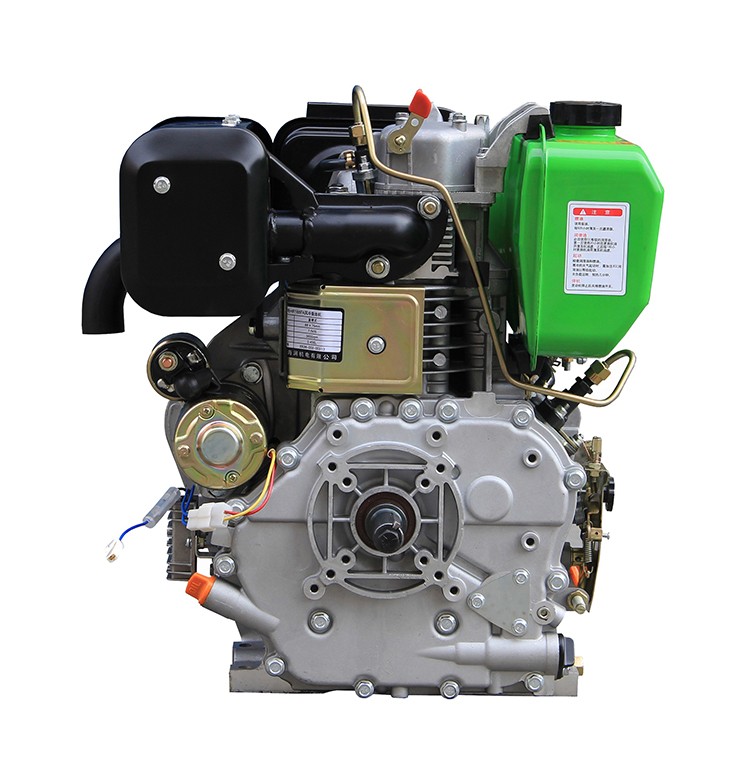

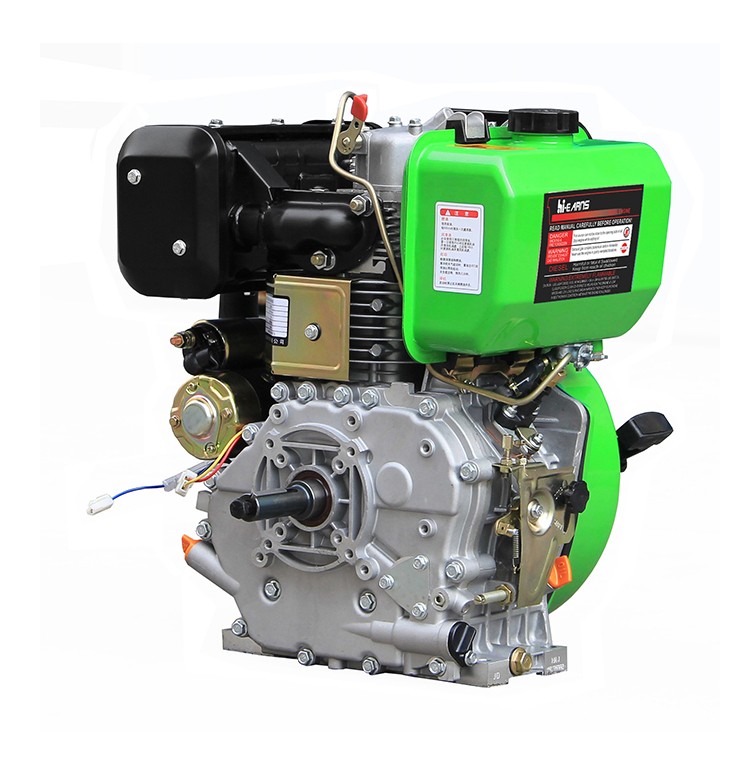

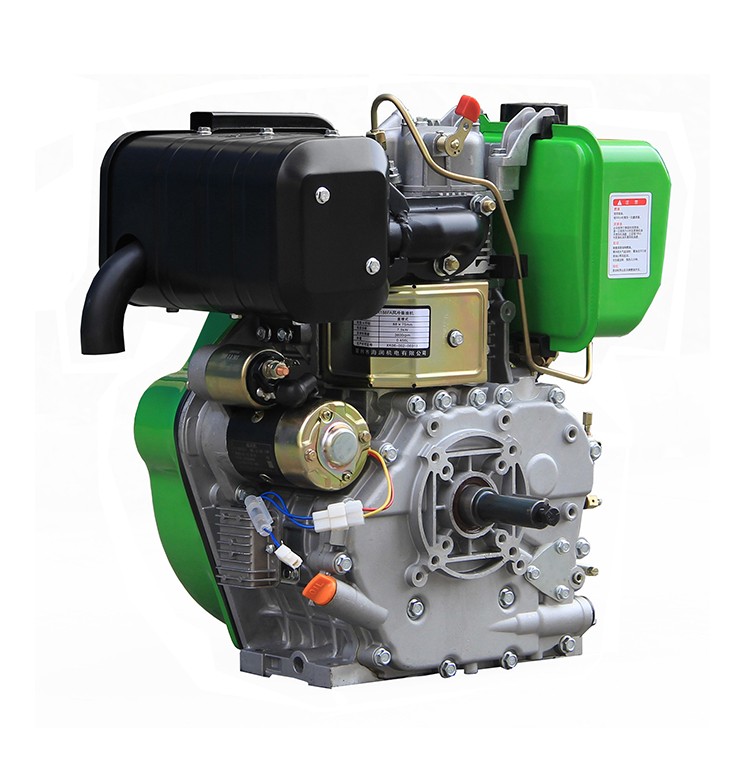

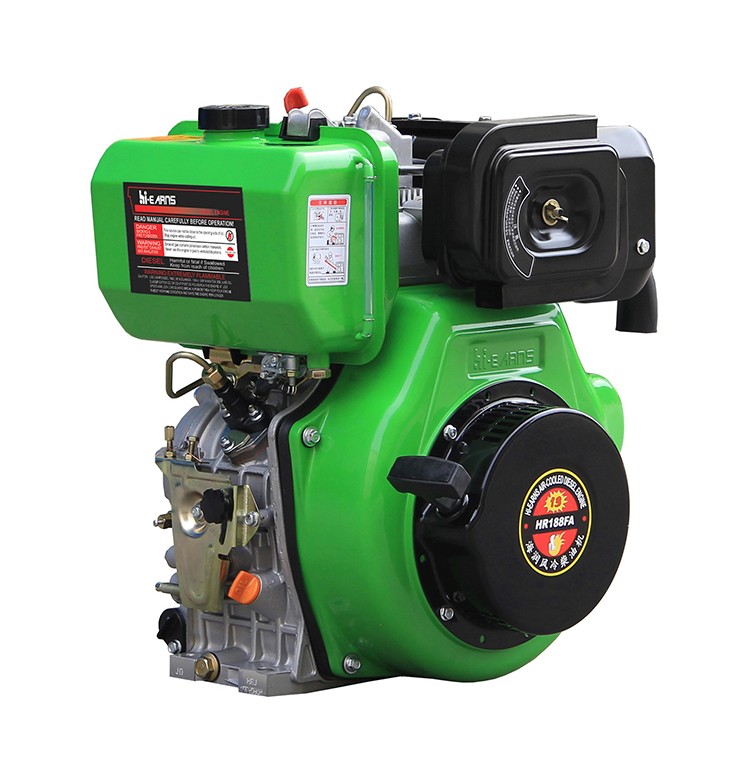

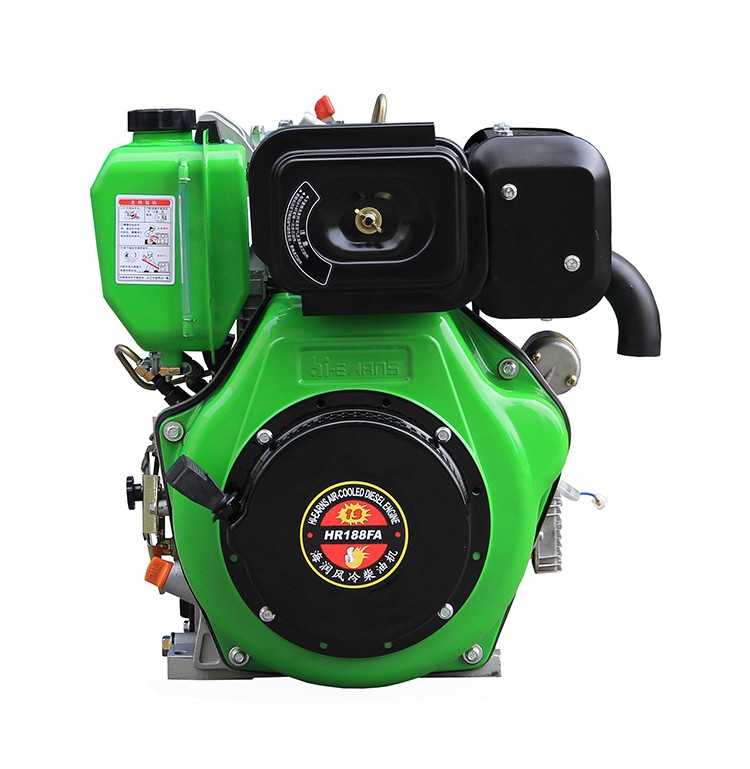

12hp single cylinder portable china diesel engine

188FA AIR-COOLED DIESEL ENGINE SERIES
ModelHR188FA
TypeSingle-cylinder,vertical,4-stroke air-cooled diesel engine
Combustion SystemDirect Injection
Bore×Stroke (mm)88×75
Displacement capacity (cc)456
Speed (rpm)30003600
Max.output (kw)7.5 8.0
Rated output (kw)7.0 7.5
Fuelo# or-10# light diesel oil
Fuel oil tank volume (l)5.5
Lubricatiom oil volume (l)1.65
Fuel oil consumption rate (g/kw.h)280
Starting systemRecoil or Electric
PTO rotation directionIt is clockwise as viewing from the flywheel end
Dimension (mm)520x490x570
Gross weight (kg)46
20FT QTY176
