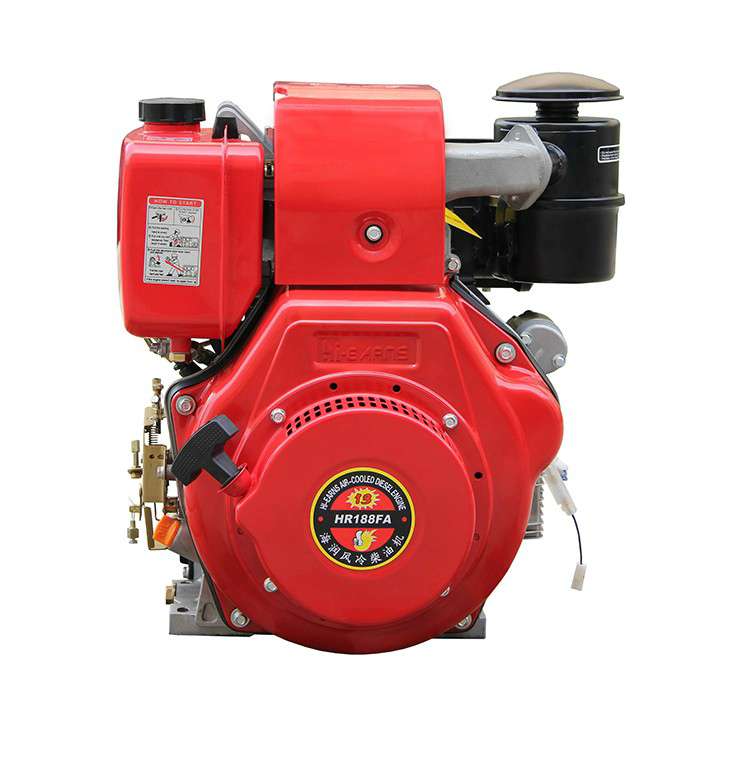

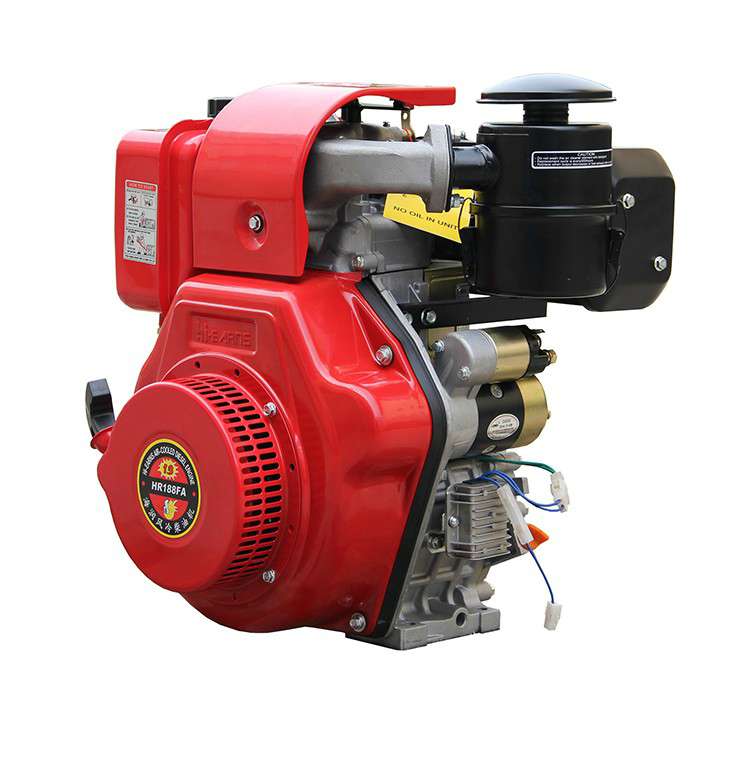

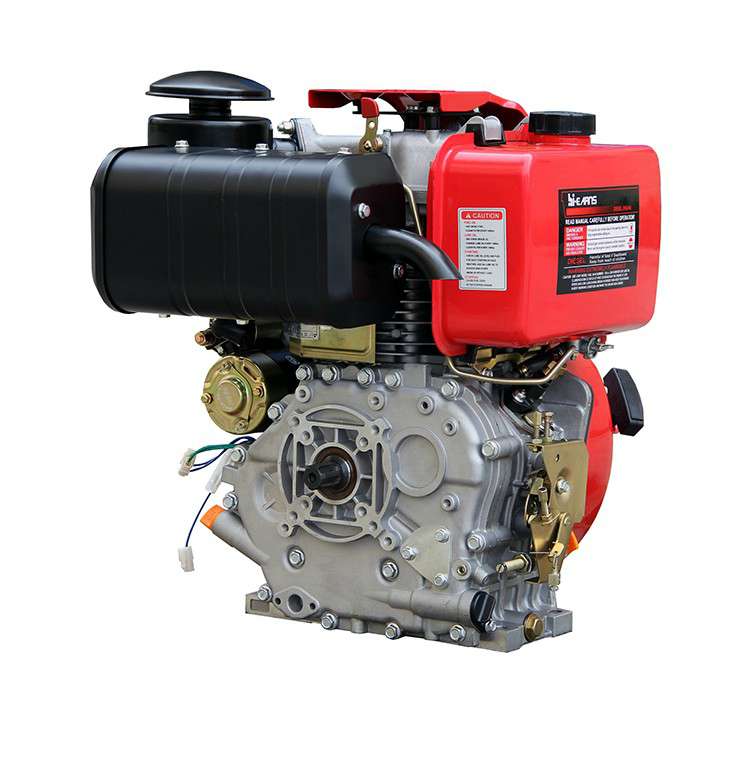

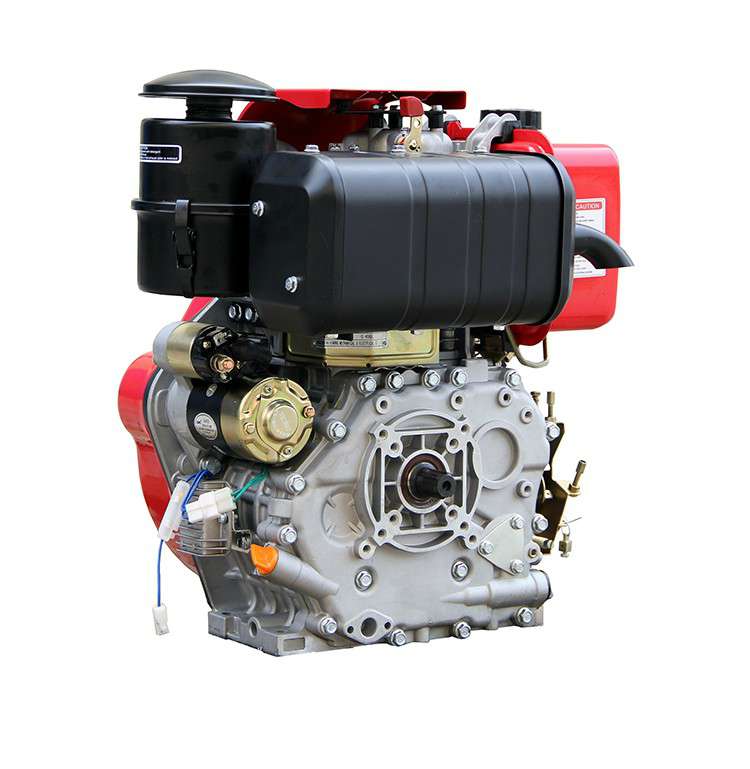

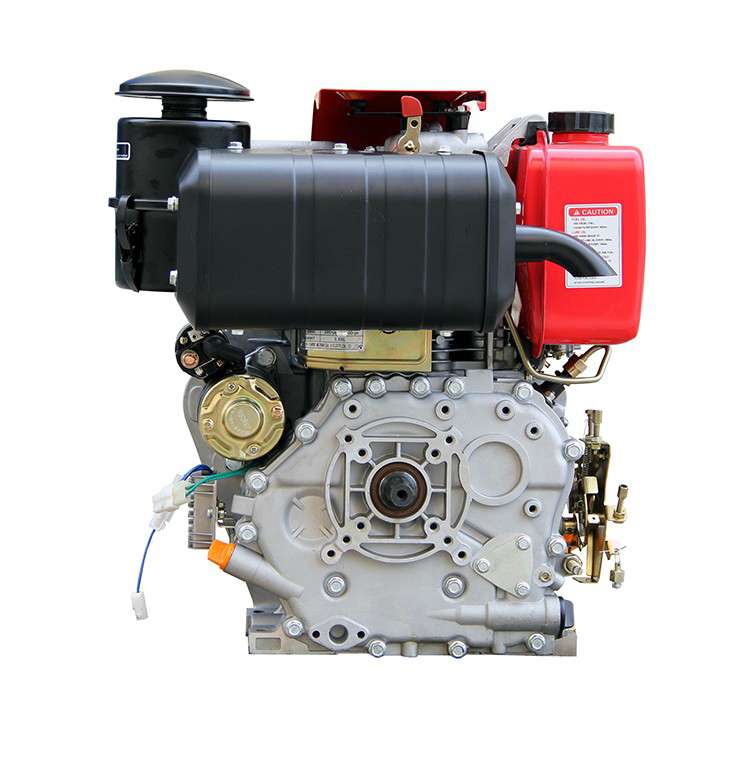

Hiearns 12hp diesel engine HR188FAE
Brief introduction：
12hp 188 engine two air clearners.Used for generators and water pump.
Distinct products.- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now
Hiearns 12hp diesel engine HR188FAE
| 188FA AIR-COOLED DIESEL ENGINE SERIES | ||
| Model | HR188FA | |
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | |
| Combustion System | Direct Injection | |
| Bore×Stroke (mm) | 88×75 | |
| Displacement capacity (cc) | 456 | |
| Speed (rpm) | 3000 | 3600 |
| Max.output (kw) | 7.5 | 8.0 |
| Rated output (kw) | 7.0 | 7.5 |
| Fuel | o# or-10# light diesel oil | |
| Fuel oil tank volume (l) | 5.5 | |
| Lubricatiom oil volume (l) | 1.65 | |
| Fuel oil consumption rate (g/kw.h) | 280 | |
| Starting system | Recoil or Electric | |
| PTO rotation direction | It is clockwise as viewing from the flywheel end | |
| Dimension (mm) | 520x490x570 | |
| Gross weight (kg) | 46 | |
| 20FT QTY | 176 | |
