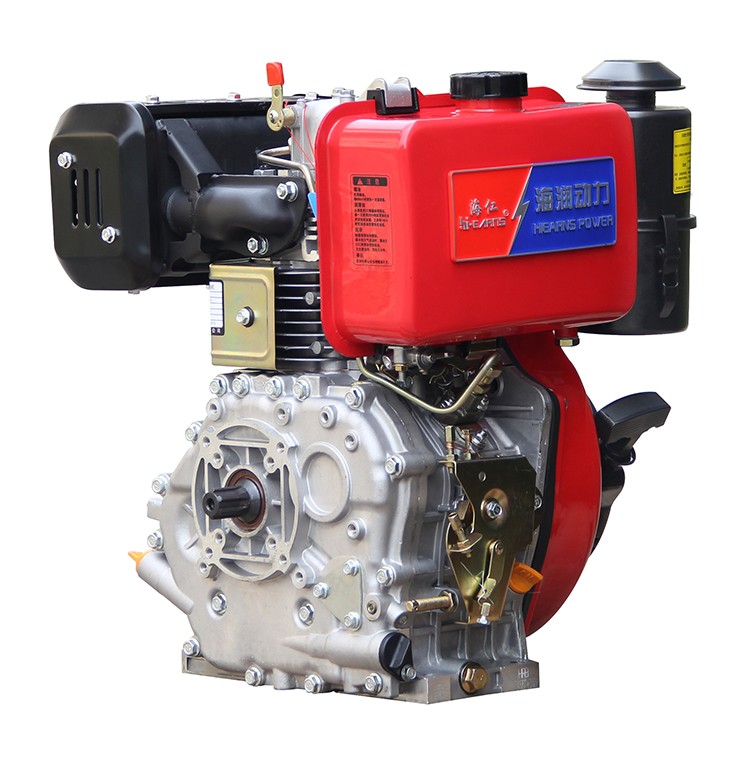

10hp air cooled diesel engine
Brief introduction：
10hp high power 3000rpm air cooled four stroke diesel engine
Fuel: Diesel
Stroke: 4 Stroke
Cylinder: Single Cylinder Cold
Style: Air-cooled
Start: electric start
Place of Origin: Jiangsu, Ch...- E-mail: smart@kubaoya.com
- Follow us:
- Inquiry Now
| Model | HR186F | HR186FA | HR188FA | |||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | |||||
| Combustion System | Direct Injection | |||||
| Bore×Stroke(mm) | 86×70 | 86×72 | 88×72 | |||
| Displacement capacity(cc) | 406 | 411 | 438 | |||
| Speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
| Horse power(hp) | 9 | 10 | 12 | |||
| Max. output(kw) | 6 | 6.5 | 6.3 | 6.8 | 7.5 | 8 |
| Rated output(kw) | 5.5 | 6 | 5.8 | 6.3 | 7 | 7.5 |
| Fuel | o# or-10# light diesel oil | |||||
| Fuel oil tank volume(L) | 5.5 | 5.5 | 5.5 | |||
| Lubricatiom oil volume(L) | 1.65 | 1.65 | 1.65 | |||
| Fuel consumption rate(g/kw.h) | ≤278 | ≤280 | ≤280 | |||
| Starting system | Recoil or Electric | |||||
| PTO rotation direction | It is clockwise as viewing from the flywheel end | |||||
| Dimension(mm) | 417×470×494 | 417×470×494 | ||||
| Net weight(kg) | 48 | 59 | 59 | |||
